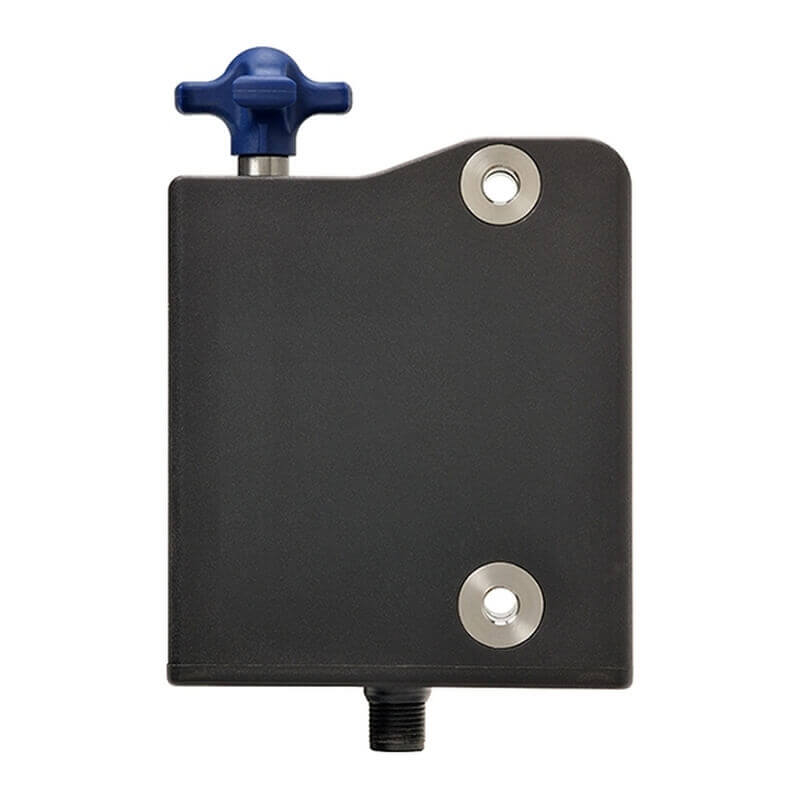

Hygienic Guard locking Switch, RFID High-coded, Actuator monitoring, Power to lock, PNP, Test Pulse, Connector plug M12, 8-pole, re-teaching enabled
| Coding | Unique |
| Connection method | Connector M12 – 8 pin |
| Degree of protection (IP) | IP66/IP67/IP69 |
| Diagnostic LED | ✔ |
| Door contacts NC | 2 |
| Door contacts NO | 1 |
| Door switch type | RFID magnetic |
| Guard-lock | ✔ |
| High coding level | ✔ |
| LED indicator | ✔ |
| Lock/Release key type | Standard key |
| Material housing | PBT |
| Number of auxiliary outputs | 1 |
| Number of safety inputs | 2 |
| Output test pulses | ✔ |
| Output type | PNP |
| Solenoid voltage | 24 V |
| Switch without actuator | ❌ |
| Teaching limitation | ❌ |
| OSSD configuration | Only guard monitoring |
| Lock/Release logic | Power to lock (Solenoid lock) |
| With escape release | ❌ |
 |
D41L-8P5-CFM12-905M | Female cable connector for D41L, straight, screw type M12, 8 poles, PUR, cable length 5 m |
|
|
D41L-8P5-CFM12-910M | Female cable connector for D41L, straight, screw type M12, 8 poles, PUR, cable length 10 m |
|
 |
D41L-A1 | Actuator for D41L, straight, 127 x 35 x 46 mm |
|
 |
D41L-MP | Mounting plate for D41L, Plastic, 101 x 40 x 18.5 mm |
|
 |
D41L-MS | Mounting Kit for D41L, 1 x Aluminium protective plate, 2x Aluminium threaded head Ø 20 mm with M6 thread, 2x Rubber discs |
|
Datasheet
EN PDF
Hygienic Guard locking Switch, RFID High-coded, Solenoid monitoring, Power to unlock, PNP, Test Pulse, Connector plug M12, 8-pole, re-teaching enabled
Hygienic Guard locking Switch, RFID High-coded, Solenoid monitoring, Power to unlock, PNP, Test Pulse, Connector plug M12, 8-pole
Hygienic Guard locking Switch, RFID High-coded, Solenoid monitoring, Power to lock, PNP, Test Pulse, Connector plug M12, 8-pole, re-teaching enabled
Hygienic Guard locking Switch, RFID High-coded, Actuator monitoring, Power to lock, PNP, Test Pulse, Connector plug M12, 8-pole, re-teaching enabled, Emergency exit
