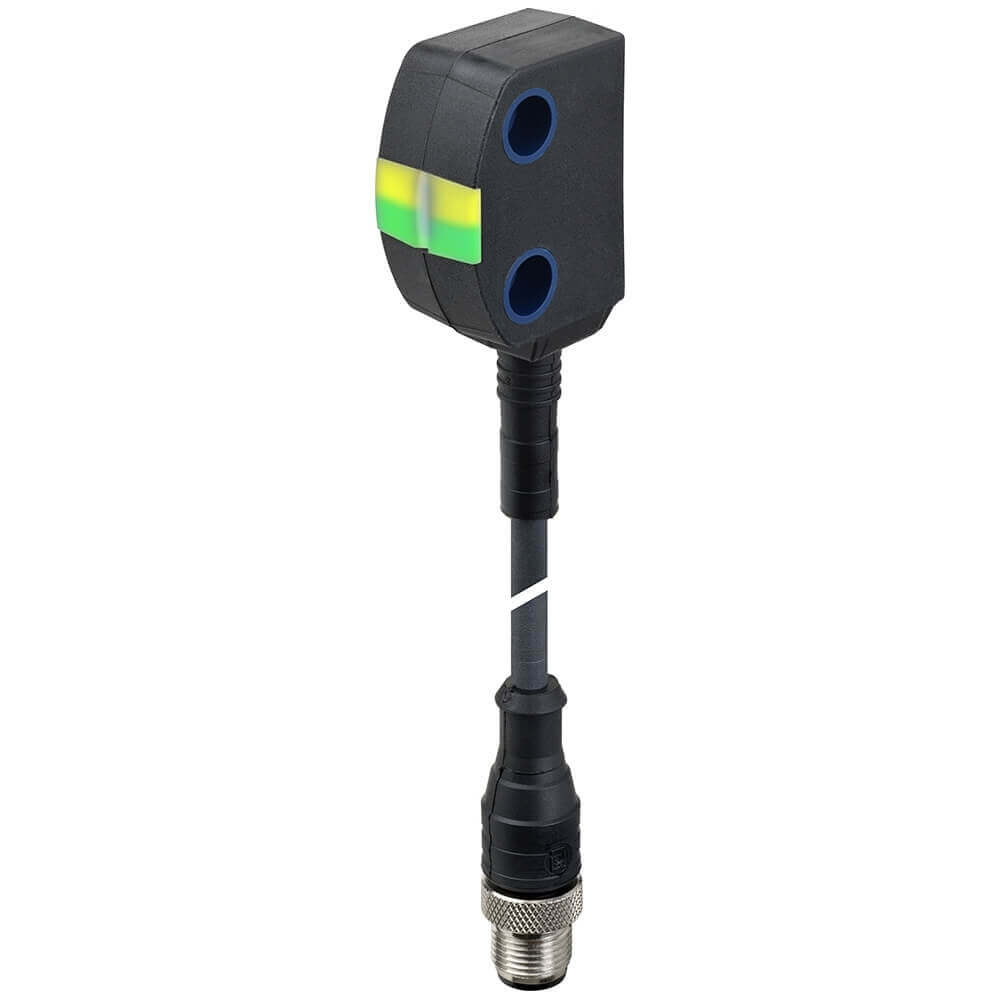

Non-contact Interlock Switch, RFID High-coded, PNP, Test Pulse, Pigtail with M12 connector 8-pole
| Coding | Unique |
| Connection method | M12 pigtail connector |
| Degree of protection (IP) | IP65/IP67 |
| Diagnostic LED | ✔ |
| Door contacts NC | 2 |
| Door contacts NO | 1 |
| Door switch type | Non-contact, RFID coded |
| Guard-lock | ❌ |
| High coding level | ✔ |
| LED indicator | ✔ |
| Material housing | PBT |
| Number of auxiliary outputs | 1 |
| Auxiliary monitoring output | PNP type, short-circuit proof |
| Cable exit direction | Bottom |
| LED indicators | Actuator detected (yellow) |
| Make before break | ❌ |
| Max. differential travel | 20 % |
| Max. operating distance ON to OFF | 18 mm |
| Min. operating distance OFF to ON | 10 mm |
| Mounting method | M4 screws |
| Number of connectable switches | 30 max. (wiring length: 100 m max.) |
| Number of OSSD | 2 |
| Output test pulses | ✔ |
| Output type | PNP |
| Shape | Rectangular compact |
| Switch without actuator | ✔ |
| Teaching limitation | ❌ |
| Vibration resistance | 10 to 55 Hz, amplitude 1.0 mm |
 |
D41D-A1 | Actuator for D41D, actuation from side, 2 x M4 screw, 39 x 29.5 x 18 mm |
|
 |
D41D-A2 | Actuator for D41D, frontal actuation, 2 x M5 screw, 60 x 16 x 6.8 mm |
|
 |
D41D-A3 | Actuator for D41D, frontal actuation, 1 x M3 screw, 23 x 9 x 7 mm |
|
 |
D41D-MS | Mounting Kit for D41D, 2 mounting plates and 4 ferrule plugs |
|
 |
D41D-SK | Sealing Kit for D41D, 4 flat plugs and 4 plugs with rim for high screw head |
|
 |
D41L-8P5-CFM12-905M | Female cable connector for D41L, straight, screw type M12, 8 poles, PUR, cable length 5 m |
|
|
D41L-8P5-CFM12-910M | Female cable connector for D41L, straight, screw type M12, 8 poles, PUR, cable length 10 m |
|
