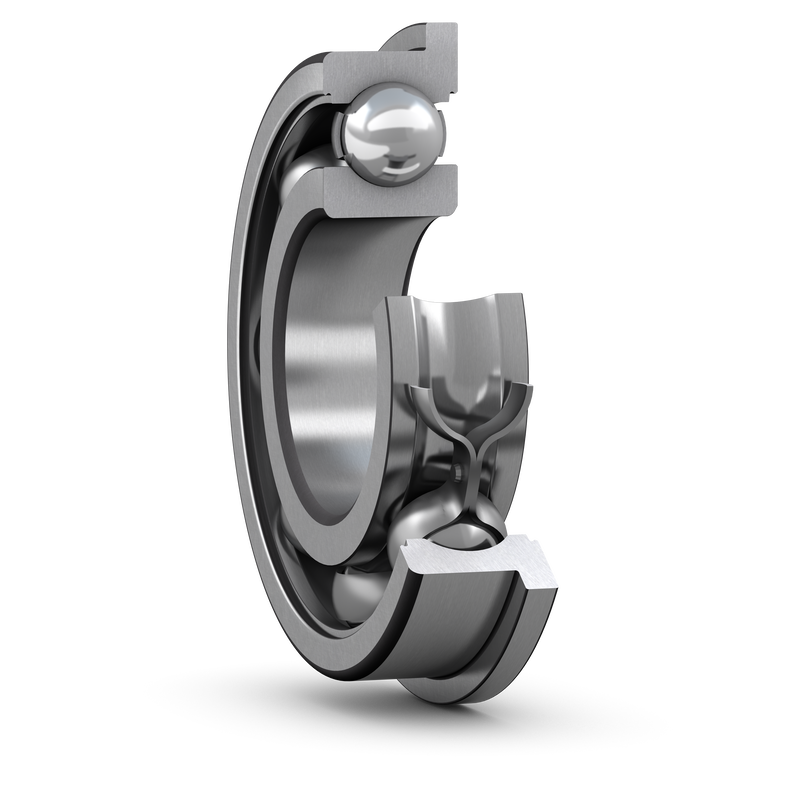

Single row deep groove ball bearings are the most widely used bearing type and are particularly versatile. They have low friction and are optimized for low noise and low vibration, which enables high rotational speeds. They can accommodate radial and axial loads in both directions, are easy to mount, and require less maintenance than many other bearing types.
| d |
3.175 mm
|
Bore diameter |
|---|---|---|
| D |
6.35 mm
|
Outside diameter |
| B |
2.38 mm
|
Width |
| d1 |
≈ 3.93 mm
|
Shoulder diameter |
| D1 |
≈ 5.38 mm
|
Shoulder diameter |
| D2 |
≈ 5.38 mm
|
Recess diameter |
| D3 |
7.518 mm
|
Flange diameter |
| C |
0.584 mm
|
Flange width |
| r1,2 |
min. 0.1 mm
|
Chamfer dimension |
| da |
min. 3.8 mm
|
Diameter of shaft abutment |
|---|---|---|
| ra |
max. 0.1 mm
|
Radius of shaft or housing fillet |
| Basic dynamic load rating | C |
0.163 kN
|
|---|---|---|
| Basic static load rating | C0 |
0.048 kN
|
| Fatigue load limit | Pu |
0.002 kN
|
| Reference speed |
170 000 r/min
|
|
| Limiting speed |
100 000 r/min
|
|
| Minimum load factor | kr |
0.02
|
| Calculation factor | f0 |
7
|
| Mass bearing |
0.0003 kg
|
| Dimensional tolerances |
Normal
|
| Radial run-out |
Normal
|
