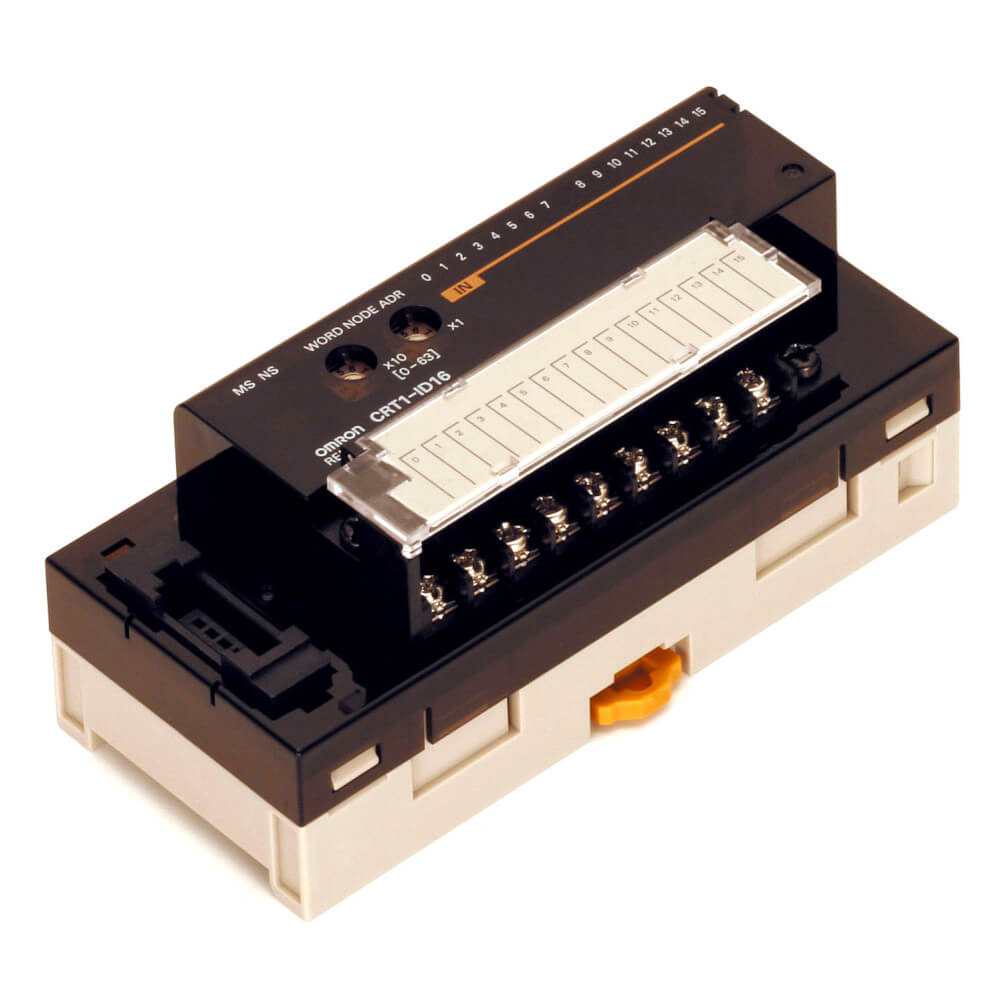

CompoNet input unit, 16 x 24 VDC inputs, PNP, screw terminals
| Communication port(s) | CompoNet Slave |
| Type of module | Digital I/O |
| I/O connection type | Screw |
| Connection method | 1-wire |
| Number of digital inputs | 16 |
| Digital input type | PNP |
| Permitted voltage at input | 0-26.4 V |
| Number of digital outputs | 0 |
| Digital output type | None |
| Short-circuit protected outputs | ❌ |
| I/O system | I/O Expansion Link |
| Degree of protection (IP) | IP20 |
| Product Height (unpacked) | 52 mm |
| Product Width (unpacked) | 115 mm |
| Product Depth (unpacked) | 50 mm |
| Product Weight (unpacked) | 138 g |
 |
DCN4-TB4 | CompoNet screw terminal connector, M3 |
|
 |
XWT-ID08-1 | CRT1/DRT2/GX-series I/O expansion unit, 8 x 24 VDC inputs, PNP (1 max per I/O terminal, specific models only) |
|
 |
XWT-ID16-1 | CRT1/DRT2/GX-series I/O expansion unit, 16 x 24 VDC inputs, PNP (1 max per I/O terminal, specific models only) |
|
 |
XWT-OD08-1 | CRT1/DRT2/GX-series I/O expansion unit, 8 x 24 VDC outputs, 0.5 A, PNP (1 max per I/O terminal, specific models only) |
|
 |
XWT-OD16-1 | CRT1/DRT2/GX-series I/O expansion unit, 16 x 24 VDC outputs, 0.5 A, PNP (1 max per I/O terminal, specific models only) |
|
Datasheet
EN PDF
CompoNet analog input unit, 4 x inputs, 1-5 V, 0-5 V, 0-10 V, -10-10 V, 0-20 mA, 4-20 mA, resolution 1:6000, screw terminals
CompoNet I/O unit, 8 x 24 VDC inputs PNP & 8 x transistor outputs PNP 0.5 A, screw terminals
CompoNet output unit, 16 x transistor outputs, NPN, 0.5 A, 24 VDC, screw terminals
CompoNet output unit, 16 x transistor outputs, PNP, 0.5 A, 24 VDC, screwless terminals
