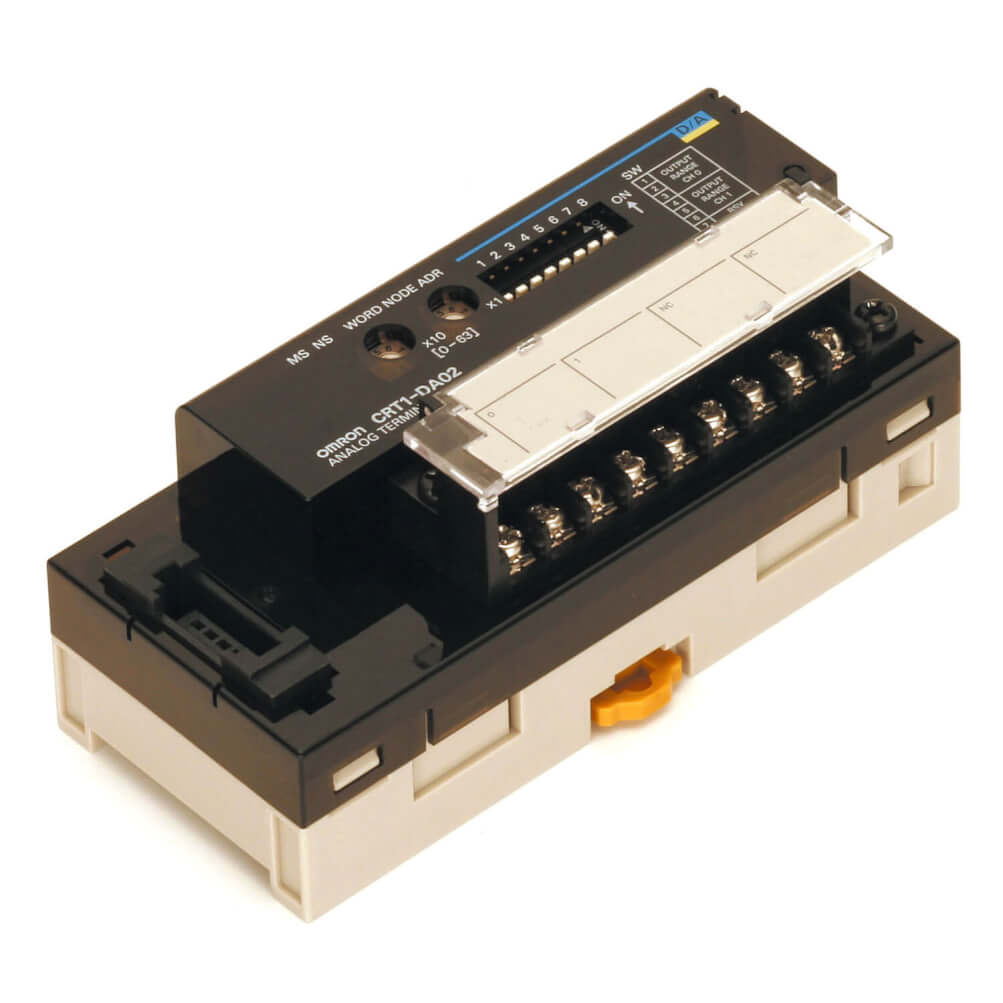

CompoNet analog output unit, 2 x inputs, 1-5 V, 0-5 V, 0-10 V, -10-10 V, resolution 1:6000, screw terminals
| Communication port(s) | CompoNet Slave |
| Type of module | Analog I/O |
| I/O connection type | Screw |
| Number of analog inputs | 0 |
| Temperature input type | None |
| Linear analog input type | None |
| Number of analog outputs | 2 |
| Linear analog output type | -10 to 10 V, 0 to 10 V, 0 to 5 V, 1 to 5 V |
| Resolution of the analog outputs | 13 Bit |
| Degree of protection (IP) | IP20 |
| Product Height (unpacked) | 50 mm |
| Product Width (unpacked) | 115 mm |
| Product Depth (unpacked) | 50 mm |
 |
DCN4-TB4 | CompoNet screw terminal connector, M3 |
|
