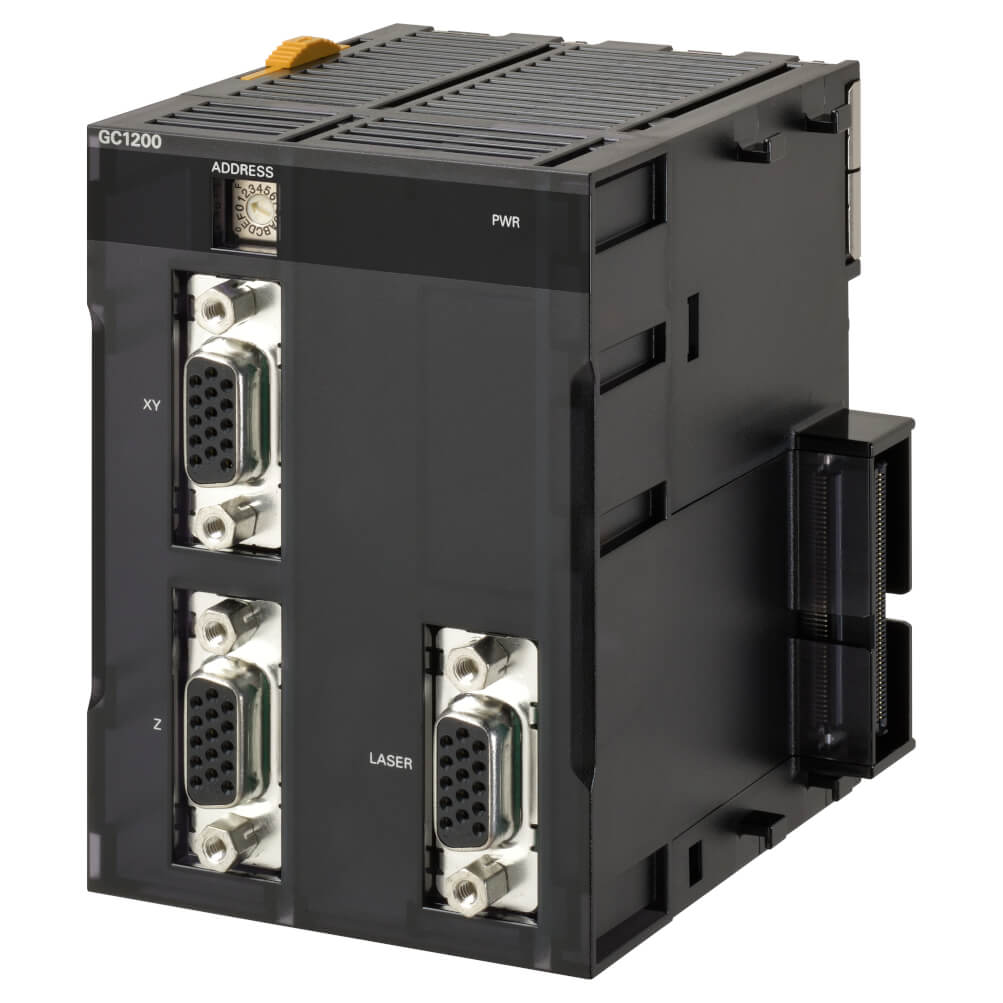

Laser Interface Unit for CK3M, XY2-100 Protocol, Laser PWM output
| Type of module | Laser interface |
| Amplifier interface | N/A |
| Encoder interface | N/A |
| Number of encoder input channels | 0 |
| Digital output type | PWM, XY2-100 |
| Product Height (unpacked) | 90 mm |
| Product Width (unpacked) | 63.2 mm |
| Product Depth (unpacked) | 80 mm |
Datasheet
EN PDF
