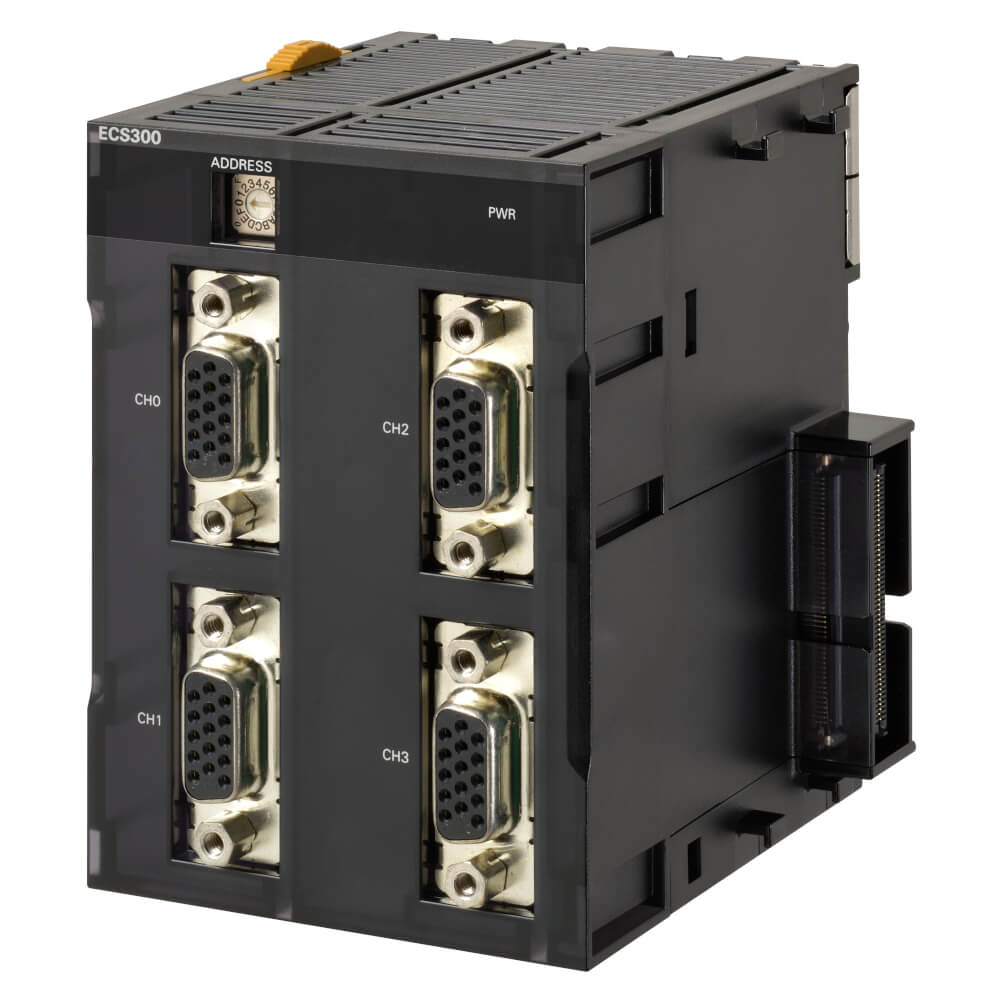

Encoder Input Unit for CK3M, Serial encoder 4 channels, BiSS-C, Endat2.2, and R88M-1Lx/-1Mx Motor built-in encoder
| Type of module | Encoder input |
| Amplifier interface | N/A |
| Encoder interface | Special Serial Protocol |
| Number of encoder input channels | 4 |
| Product Height (unpacked) | 90 mm |
| Product Width (unpacked) | 63.2 mm |
| Product Depth (unpacked) | 80 mm |
Datasheet
EN PDF
