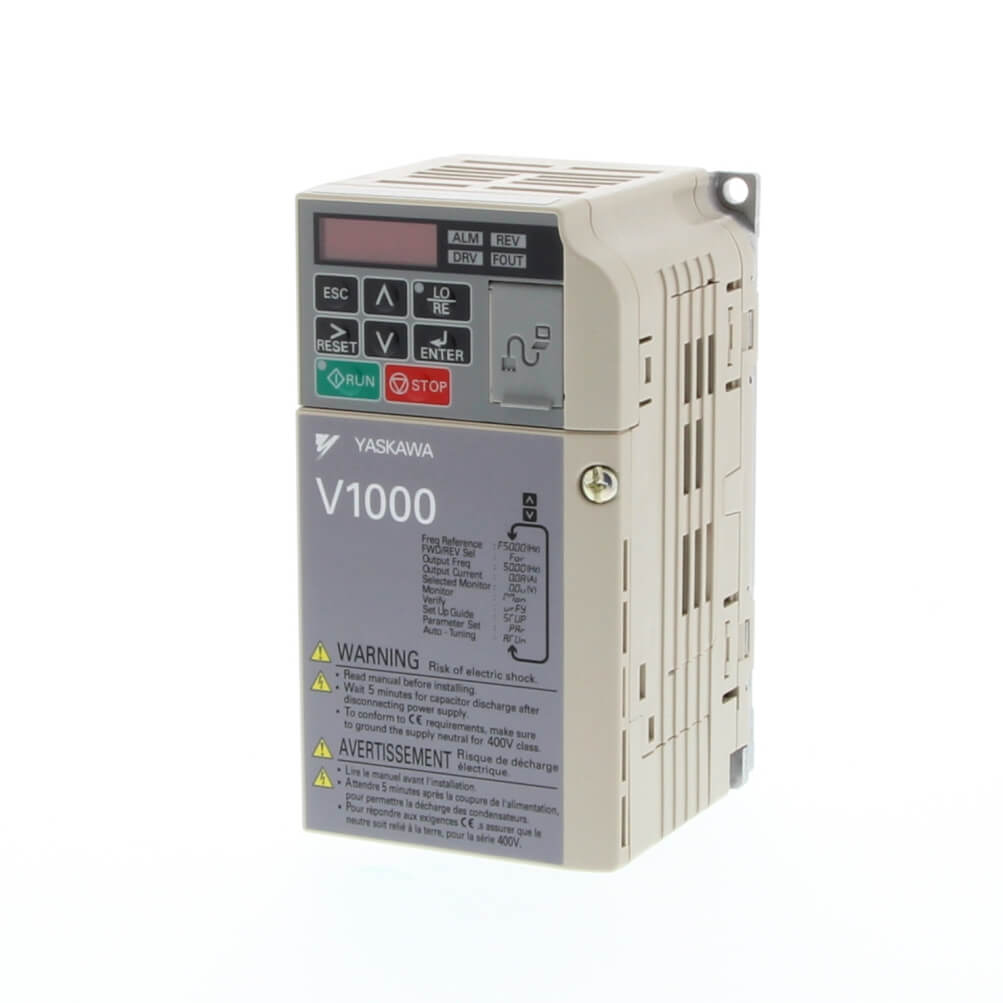

V1000 Finless type Inverter, IP20 , 3/4KW(HD/ND), 7.2/8.8A(HD/ND), 3~400VAC, sensorless vector, LED operator., max. output freq. 400Hz
| Drive control method | Open loop V/f, Open loop vector |
| Drive supply voltage | 400 V three phase |
| Max. motor output at constant torque (HD) | 3 kW |
| Max. motor output at variable torque (ND) | 3.7 kW |
| Built in EMC filter | ❌ |
| Degree of protection (IP) | IP20 |
| Finless type | ✔️ |
| Compatible motor type | Induction or asynchronous motor, Permanent magnet motor |
| Regenerative solutions | As inverter option |
| Communication port(s) | MODBUS Slave, Serial RS-422, Serial RS-485 |
| Communication option(s) | CANopen, DeviceNet Slave, EtherCAT Slave, EtherNet/IP, MECHATROLINK II Slave, MODBUS/TCP, POWERLINK, PROFIBUS DP Slave, PROFINET Slave |
| Product Height (unpacked) | 128 mm |
| Product Width (unpacked) | 108 mm |
| Product Depth (unpacked) | 96 mm |
| Product Weight (unpacked) | 1100 g |
 |
AX-FIC4010-SE | Common footprint RFI filter for Compact series (Q2V/V1000/J1000/MX2), 9.4 A, 400 VAC, three phase. Please check datasheet for the correct drive selection. |
|
| AX-FIC4010-SE-LL | Low Leakage common footprint RFI filter for Compact series (Q2V/V1000/J1000/MX2), 9.4 A, 400 VAC. Please check datasheet for the correct drive selection. |
|
|
| SI-EN3/V | EtherNet/IP option board for V1000 inverter |
|
|
| SI-ES3/V | Ethercat option board for V1000 |
|
|
 |
SI-N3/V | DeviceNet option board for V1000 inverter |
|
 |
SI-P3/V | PROFIBUS DP option board for V1000 inverter |
|
Datasheet
EN PDF
Variable Frequency Drive, max. output freq. 400 Hz
V1000 Finless type Inverter, IP20 , 11/15KW(HD/ND), 47/56A(HD/ND), 3~200VAC, sensorless vector, LED operator., max. output freq. 400Hz
Variable Frequency Drive, max. output freq. 400 Hz
Variable Frequency Drive, max. output freq. 400 Hz
