Chemical seal CSB

Application area

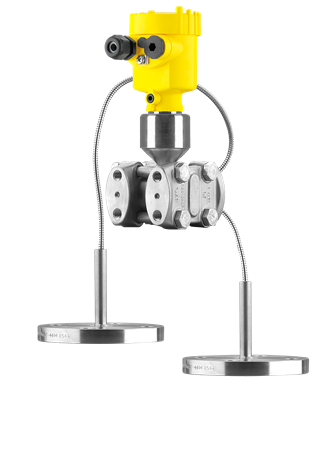

The VEGADIF 85 and VEGADIF 65 with chemical seal CSB (both side assembly) are suitable for level, interface, density, differential pressure and flow measurement. Through the assembly of the chemical seal CSB, applications in corrosive, high viscosity and hot products can be realized.

Your benefit

High chemical resistance through high quality diaphragm materials

SKU: Chemical seal CSB

Add to Cart

Technical specifications

Measuring range – Distance	– [Meter – Foot]
Measuring range – Pressure	-40 … 40 bar [Bar – kPa – psi]
Process temperature	-40 … 400 °C [°C – °F]
Process pressure	-100 … 100 bar [Bar – kPa – psi]
Materials, wetted parts	316L Tantalum Alloy C276 (2.4819)
Flange connection	≥ DN50, ≥ 2″

54850-EN-Operating-instructions-Chemical-seal-CSB-for-VEGADIF-85

Operating instructions
EN PDF

34146-EN-Chapter-Differential-pressure

Product catalog
EN PDF
