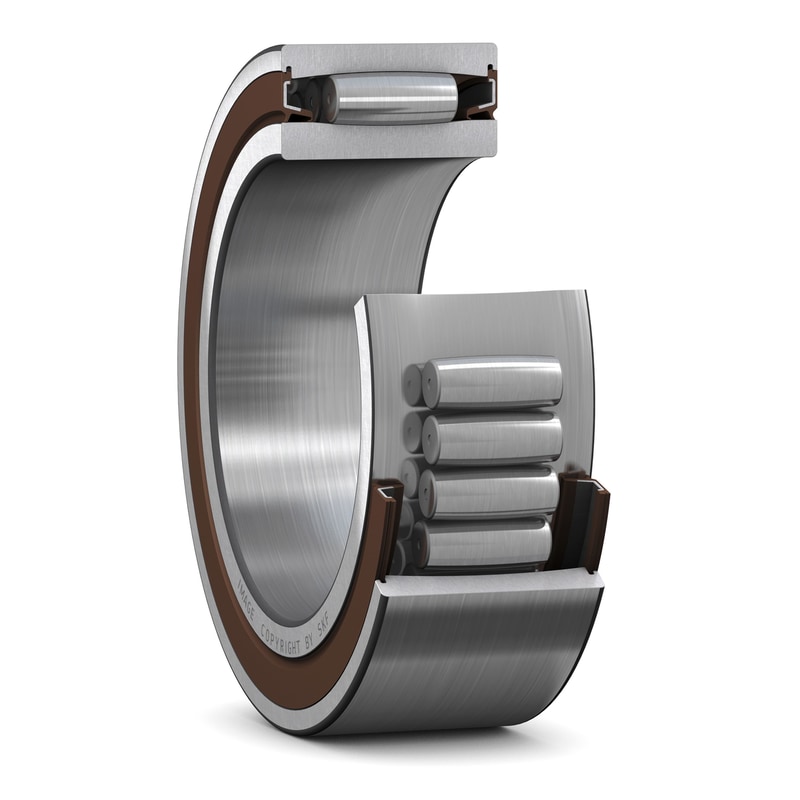

CARB toroidal roller bearings are unique: as well as accommodating misalignment without increased stress levels, they also provide frictionless axial movement within the bearing in the non-locating position in self-aligning bearing arrangements. This bearing has a lower speed rating and is sealed to minimize the need for lubrication and extend service life.
| SKF performance class |
SKF Explorer
|
| Bore type |
Cylindrical
|
| d |
75 mm
|
Bore diameter |
|---|---|---|
| D |
105 mm
|
Outside diameter |
| B |
40 mm
|
Width |
| d2 |
≈ 82.9 mm
|
Shoulder diameter of inner ring |
| D1 |
≈ 96.1 mm
|
Shoulder or recess diameter of outer ring |
| s2 |
max. 5 mm
|
Permissible axial displacement |
| r1,2 |
min. 1 mm
|
Chamfer dimension |
| da |
min. 79.6 mm
|
Diameter of shaft abutment |
|---|---|---|
| da |
max. 84.1 mm
|
Diameter of shaft abutment |
| Da |
min. 85 mm
|
Diameter of housing abutment |
| Da |
max. 100 mm
|
Abutment diameter housing |
| ra |
max. 1 mm
|
Radius of fillet |
| Basic dynamic load rating | C |
166 kN
|
|---|---|---|
| Basic static load rating | C0 |
232 kN
|
| Fatigue load limit | Pu |
0 kN
|
| Limiting speed |
130 r/min
|
|
| Misalignment factor | k1 |
0.083
|
| Internal clearance factor | k2 |
0.142
|
| Mass |
3.9 kg
|
