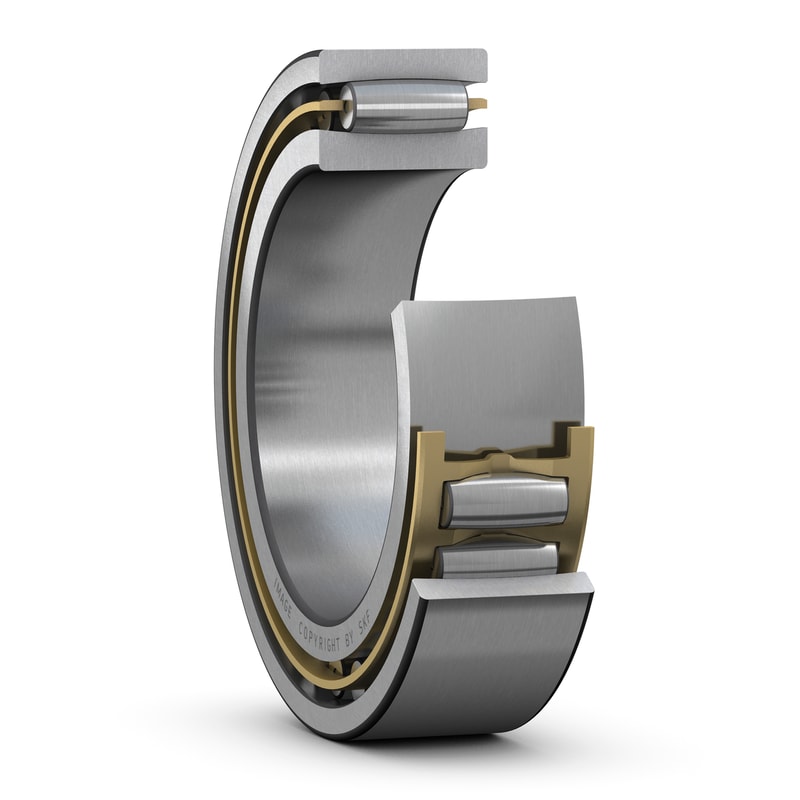

CARB toroidal roller bearings are unique: as well as accommodating misalignment without increased stress levels, they also provide frictionless axial movement within the bearing in the non-locating position in self-aligning bearing arrangements. Being SKF Explorer bearings, they can accommodate higher load levels and provide significantly extended service life.
| SKF performance class |
SKF Explorer
|
| Bore type |
Tapered 1:30
|
| d |
500 mm
|
Bore diameter |
|---|---|---|
| D |
830 mm
|
Outside diameter |
| B |
325 mm
|
Width |
| d2 |
≈ 600 mm
|
Shoulder diameter of inner ring |
| D1 |
≈ 740 mm
|
Shoulder or recess diameter of outer ring |
| s1 |
max. 46.3 mm
|
Permissible axial displacement |
| r1,2 |
min. 7.5 mm
|
Chamfer dimension |
| Da |
min. 721 mm
|
Diameter of housing abutment |
|---|---|---|
| Da |
max. 798 mm
|
Abutment diameter housing |
| Ca |
min. 5.9 mm
|
Minimum width of space required in housing |
| ra |
max. 6 mm
|
Radius of fillet |
|
||
| Basic dynamic load rating | C |
9 800 kN
|
|---|---|---|
| Basic static load rating | C0 |
17 600 kN
|
| Fatigue load limit | Pu |
1 160 kN
|
| Reference speed |
430 r/min
|
|
| Limiting speed |
560 r/min
|
|
| Misalignment factor | k1 |
0.115
|
| Internal clearance factor | k2 |
0.093
|
| Mass |
695 kg
|
