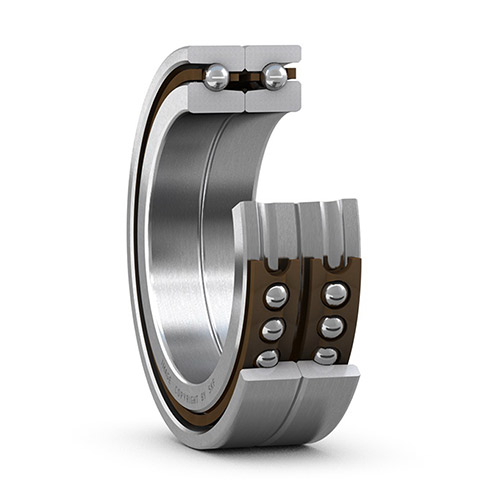

Super precision double direction angular contact ball bearings are designed to locate spindle shafts axially in both directions. They can accommodate axial forces in both directions and are available in two main designs: BTW (the basic series bearings, which accommodate greater axial loads) and BTM (the high-speed series bearings, which accommodate higher speeds).
| d |
120 mm
|
Bore diameter |
|---|---|---|
| D |
180 mm
|
Outside diameter |
| H |
54 mm
|
Height |
| d1 |
147.7 mm
|
Shoulder diameter shaft washer (high shoulder) |
| D1 |
165 mm
|
Shoulder diameter housing washer (low shoulder) |
| r1,2 |
min. 2 mm
|
Shaft washer chamfer radius |
| r3,4 |
min. 1 mm
|
Housing washer small chamfer radius |
| da |
min. 129 mm
|
Abutment diameter shaft |
|---|---|---|
| Da |
max. 175 mm
|
Abutment diameter housing |
| ra |
max. 2 mm
|
Fillet radius |
| rb |
max. 1 mm
|
Fillet radius |
| dn |
144.1 mm
|
Oil nozzle position |
| Basic dynamic load rating | C |
58.5 kN
|
|---|---|---|
| Basic static load rating | C0 |
146 kN
|
| Fatigue load limit | Pu |
5 kN
|
| Attainable speed for grease lubrication |
5 200 r/min
|
|
| Attainable speed for oil-air lubrication |
6 700 r/min
|
|
| Contact angle | α |
30 °
|
| Preload class A |
600 N
|
|
| Preload class B |
1 800 N
|
|
| Axial stiffness for preload A (sets of two brgs back-to-back or face-to-face) |
377 N/µm
|
|
| Axial stiffness for preload B (sets of two brgs back-to-back or face-to-face) |
571 N/µm
|
|
| Reference grease quantity | Gref |
40 cm³
|
|
Speed values are applicable to bearings with light preload (suffix DBA). For bearings with a heavy preload (suffix DBB), attainable speeds are about 75% of the quoted values.
|
| Mass bearing |
4.55 kg
|
