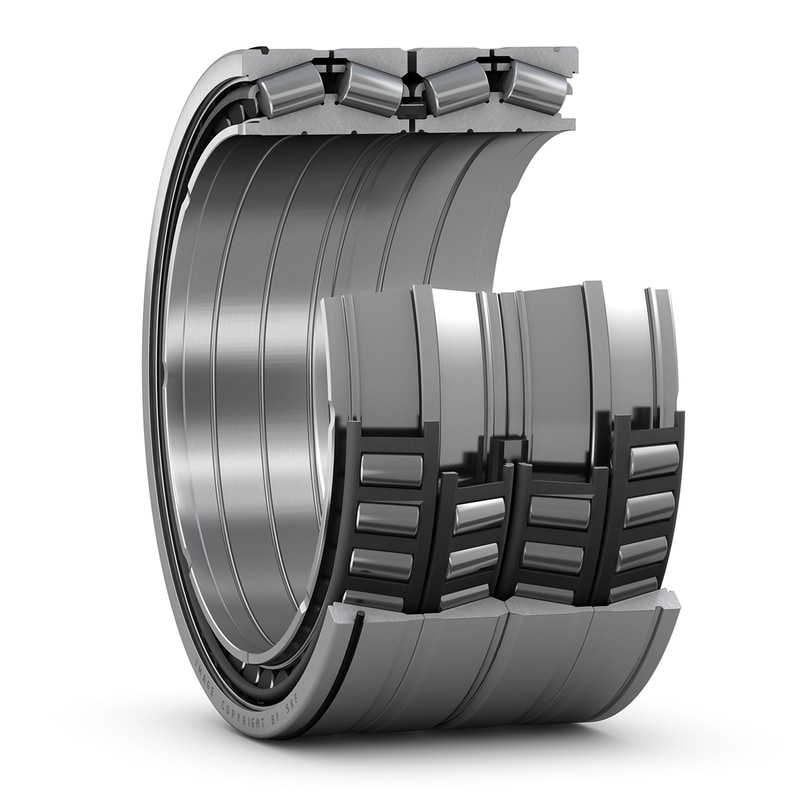

Four-row tapered roller bearings can accommodate combined heavy radial and axial loads at low to moderate speeds. They are used almost exclusively in work roll applications such as rolling mills. SKF manufactures four-row tapered roller bearings in TQO and TQI designs, in many variants and with different features.
| SKF performance class |
SKF Explorer
|
| Design variant/feature |
TQON/GW
|
| Bore type |
Cylindrical with helical groove
|
| d |
710 mm
|
Bore diameter |
|---|---|---|
| D |
900 mm
|
Outside diameter |
| B |
410 mm
|
Total bearing width over inner rings |
| T |
410 mm
|
Total bearing width over outer rings |
| d1 |
≈ 752 mm
|
Abutment diameter shaft |
| D1 |
≈ 845 mm
|
Abutment diameter housing |
| r1,2 |
min. 3 mm
|
Chamfer dimension inner ring |
| r3,4 |
min. 6 mm
|
Outer ring radius (chamfer) |
| Basic dynamic load rating | C |
11 847 kN
|
|---|---|---|
| Basic static load rating | C0 |
27 000 kN
|
| Fatigue load limit | Pu |
1 800 kN
|
| Comparative radial load rating | CF |
2 900 kN
|
| Comparative axial load rating | CFa |
500 kN
|
| Thrust factor | K |
1.66
|
| Limiting value | e |
0.35
|
| Calculation factor | Y1 |
1.9
|
| Calculation factor | Y2 |
2.9
|
| Calculation factor | Y0 |
1.8
|
| Mass bearing |
620 kg
|
