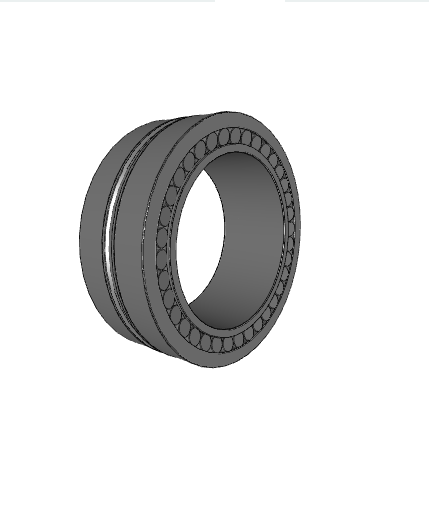

SKF double row tapered roller bearings are ready-to-mount units, manufactured with a predetermined axial clearance or preload. TDI design bearings have a double row inner ring and two outer rings that usually have an intermediate ring between them. Their roller sets are arranged face-to-face (X-arrangement). Design variants include features such as a helical groove in the bore, locating slots in the inner ring, or seals on both sides.
| Design variant/feature |
TDI/GWIY2
|
| Bore type |
Cylindrical with helical groove
|
| d |
571.5 mm
|
Bore diameter |
|---|---|---|
| D |
812.8 mm
|
Outside diameter |
| T |
285.75 mm
|
Total width |
| B |
285.75 mm
|
Width of inner ring |
| d1 |
≈ 621 mm
|
Diameter of shaft abutment |
| D1 |
≈ 720 mm
|
Diameter of housing abutment |
| r1,2 |
min. 3.3 mm
|
Chamfer dimension of inner ring |
| r3,4 |
min. 6.4 mm
|
Chamfer dimension of outer ring |
| Basic dynamic load rating | C |
7 210 kN
|
|---|---|---|
| Basic static load rating | C0 |
18 000 kN
|
| Fatigue load limit | Pu |
1 200 kN
|
| Limiting value | e |
0.33
|
| Calculation factor | Y1 |
2
|
| Calculation factor | Y2 |
3
|
| Calculation factor | Y0 |
2
|
| Comparative radial load rating | CF |
1 760 kN
|
| Comparative axial load rating | CFa |
580 kN
|
| Thrust factor | K |
1.76
|
| Mass |
500 kg
|
