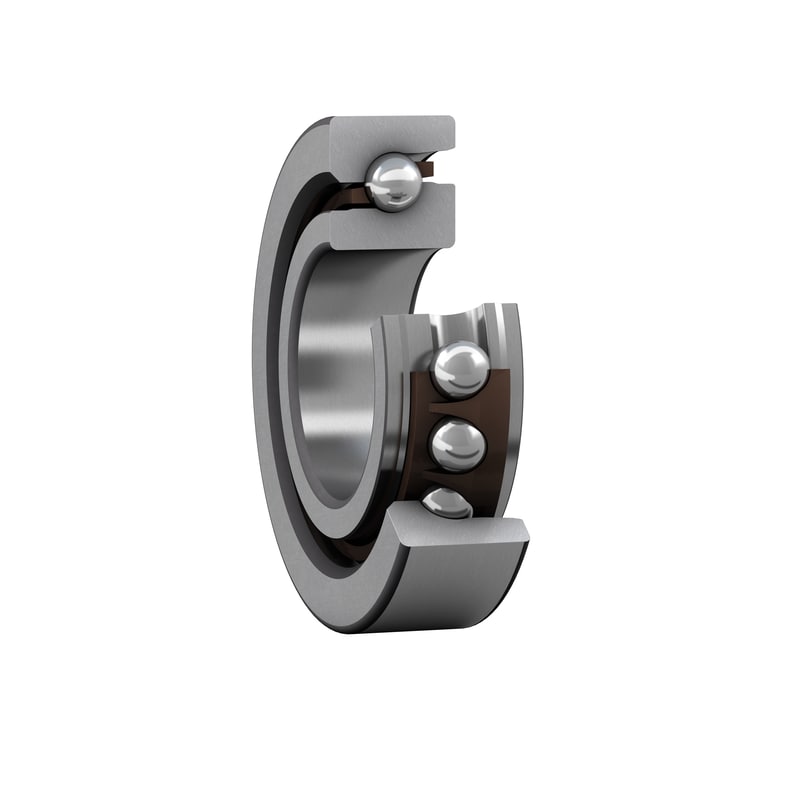

These super-precision ball bearings offer very high running accuracy and are well suited for screw drive applications. They are also beneficial in other applications, where safe radial and axial support is required, together with extremely precise axial guidance of the shaft. They provide a high degree of axial stiffness and can accommodate heavy axial loads in one direction, high speeds and rapid accelerations.
| d |
40 mm
|
Bore diameter |
|---|---|---|
| D |
80 mm
|
Outside diameter |
| H |
18 mm
|
Height |
| d1 |
50.3 mm
|
Shoulder diameter |
| d2 |
58 mm
|
Shoulder diameter |
| D1 |
58.1 mm
|
Shoulder/recess diameter |
| D2 |
66.45 mm
|
Shoulder/recess diameter |
| r1,2 |
min. 1.1 mm
|
Chamfer dimension |
| a |
64 mm
|
Distance to pressure point |
| da |
min. 48 mm
|
Diameter of shaft abutment |
|---|---|---|
| db |
min. 48 mm
|
Diameter of shaft abutment |
| Da |
max. 74 mm
|
Diameter of housing abutment |
| Db |
max. 74 mm
|
Diameter of housing abutment |
| ra |
max. 1 mm
|
Radius of housing fillet |
| Basic dynamic load rating | C |
42.5 kN
|
|---|---|---|
| Basic static load rating | C0 |
112 kN
|
| Fatigue load limit | Pu |
4.15 kN
|
| Attainable speed for grease lubrication |
6 300 r/min
|
|
| Attainable speed for oil-air lubrication |
7 500 r/min
|
|
| Contact angle | α |
62 °
|
| Preload |
3 400 N
|
|
| Frictional moment |
0.212 N·m
|
|
| Axial stiffness for preload A (sets of two brgs back-to-back or face-to-face) |
1 130 N/µm
|
|
| Maximum axial load carrying capacity | Fa |
max. 37.9 kN
|
| Reference grease quantity | Gref |
3.7 cm³
|
| Mass bearing |
0.43 kg
|
