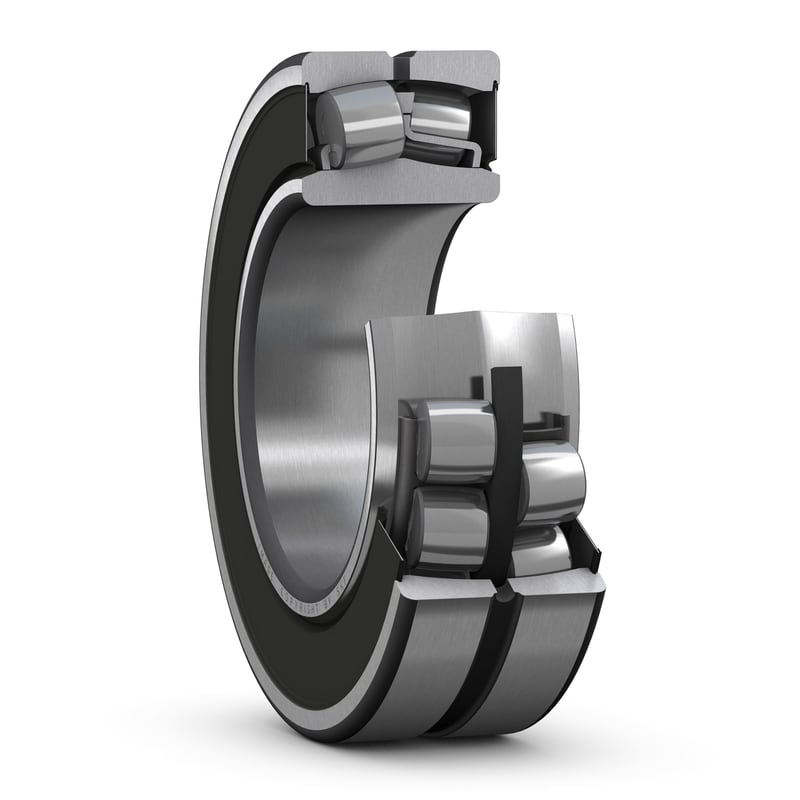

Spherical roller bearings can accommodate heavy loads in both directions. They are self-aligning and accommodate misalignment and shaft deflections, with virtually no increase in friction or temperature. Under normal operating conditions, sealed bearings are almost maintenance-free, keeping service costs and grease consumption low. The design includes features to facilitate relubrication.
| SKF performance class |
SKF Explorer
|
| Bore type |
Tapered 1:12
|
| d |
65 mm
|
Bore diameter |
|---|---|---|
| D |
120 mm
|
Outside diameter |
| B |
38 mm
|
Width |
| d2 |
≈ 76.5 mm
|
Shoulder diameter of inner ring |
| D1 |
≈ 110 mm
|
Shoulder/recess diameter of outer ring |
| b |
6 mm
|
Width of lubrication groove |
| K |
3 mm
|
Diameter of lubrication hole |
| r1,2 |
min. 1.5 mm
|
Chamfer dimension |
| Da |
max. 111 mm
|
Diameter of housing abutment |
|---|---|---|
| ra |
max. 1.5 mm
|
Radius of fillet |
| Basic dynamic load rating | C |
198 kN
|
|---|---|---|
| Basic static load rating | C0 |
216 kN
|
| Fatigue load limit | Pu |
23.6 kN
|
| Limiting speed |
2 500 r/min
|
|
| Limiting value | e |
0.24
|
| Calculation factor | Y1 |
2.8
|
| Calculation factor | Y2 |
4.2
|
| Calculation factor | Y0 |
2.8
|
| Mass |
1.6 kg
|
| Recommended tightening angle for lock nut | α |
115 °
|
|---|
| Dimensional tolerances |
Normal
|
| Radial run-out |
P5
|
