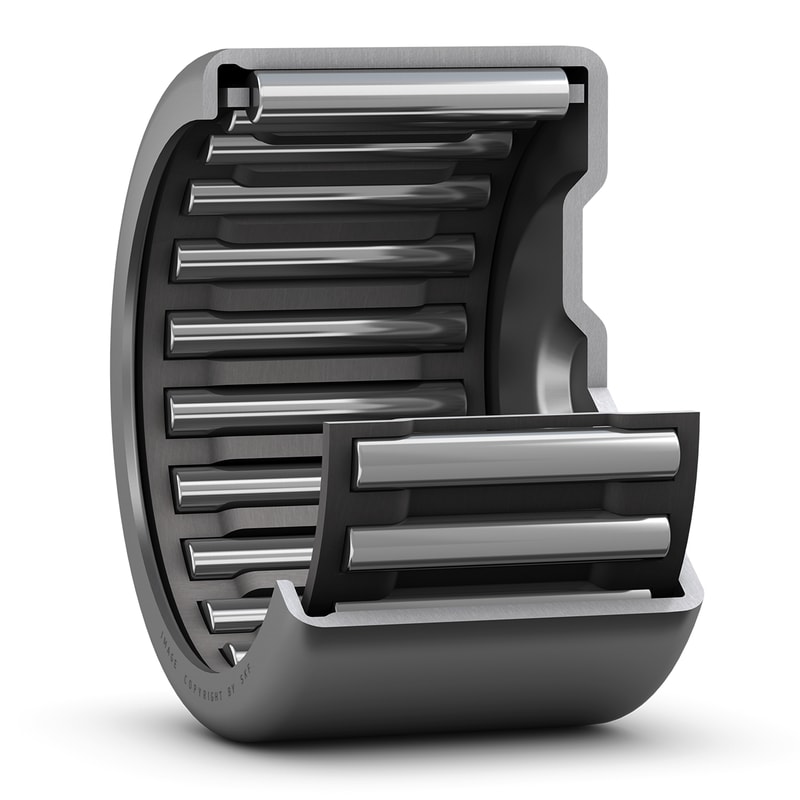

Drawn cup needle roller bearings are typically used in applications where the housing bore cannot be used as a raceway for a needle roller and cage assembly, but where a very compact and economical bearing arrangement is required. Owing to the large number of rollers, the bearings have a high load carrying capacity and stiffness. The closed end makes them suitable for bearing arrangements where they are situated at the end of a shaft.
| Fw |
13 mm
|
Diameter under rollers |
|---|---|---|
| D |
19 mm
|
Outside diameter |
| C |
12 mm
|
Width |
| C1 |
min. 9.3 mm
|
Depth of the drawn cup BK |
| r |
min. 0.8 mm
|
Chamfer dimension drawn cup (outer ring) |
| Basic dynamic load rating | C |
6.6 kN
|
|---|---|---|
| Basic static load rating | C0 |
8 kN
|
| Fatigue load limit | Pu |
0.915 kN
|
| Reference speed |
16 000 r/min
|
|
| Limiting speed |
17 000 r/min
|
| Mass bearing |
0.011 kg
|
