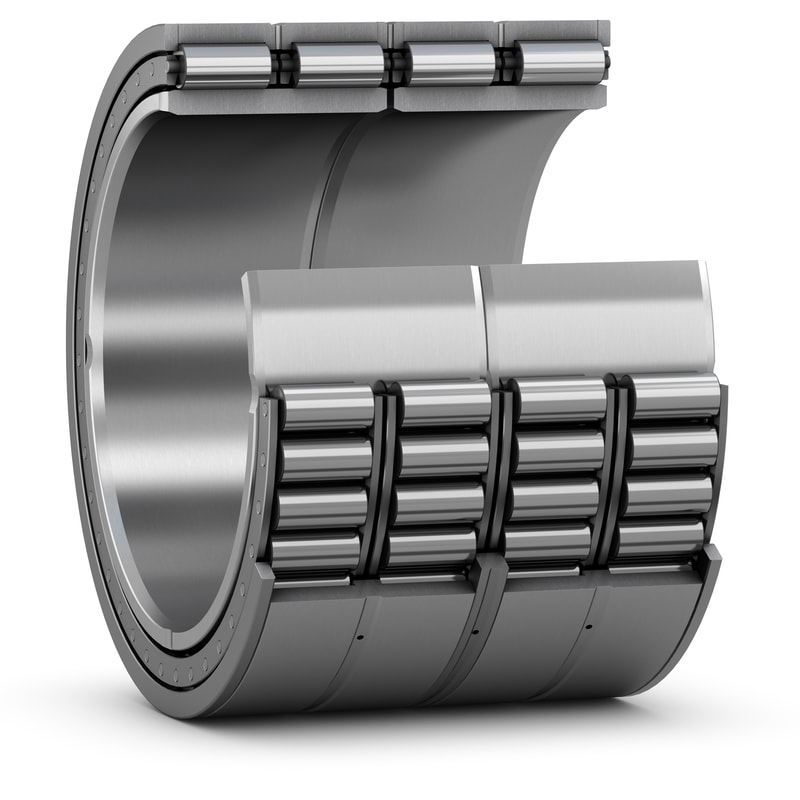

Four-row cylindrical roller bearings are designed to accommodate very heavy radial loads in combination with medium to high speeds. The SKF assortment includes many designs and variants, such as bearings with a cage and full complement bearings. Depending on the configuration of the outer and inner rings, the bearings are available in locating as well as non-locating designs.
| Design variant/feature |
BC4.10/W33WI
|
| Bore type |
Cylindrical
|
| d |
350 mm
|
Bore diameter |
|---|---|---|
| D |
500 mm
|
Outside diameter |
| B |
410 mm
|
Total bearing width over inner ring(s) |
| C |
410 mm
|
Total bearing width over outer ring(s) |
| D1 |
≈ 455 mm
|
Outer ring shoulder diameter |
| F |
388 mm
|
Raceway diameter inner ring |
| b |
16.7 mm
|
Width of annular groove |
| K |
9 mm
|
Diameter lubrication hole (outer ring) |
| r1,2 |
min. 10 mm
|
Corner radius/chamfer inner ring |
| α |
20 °
|
Chamfer angle inner ring |
| r3,4 |
min. 2 mm
|
Chamfer dimension on the outer ring |
| Basic dynamic load rating | C |
5 830 kN
|
|---|---|---|
| Basic static load rating | C0 |
13 700 kN
|
| Fatigue load limit | Pu |
1 200 kN
|
| Calculation factor | kr |
750
|
| Mass bearing |
285 kg
|
