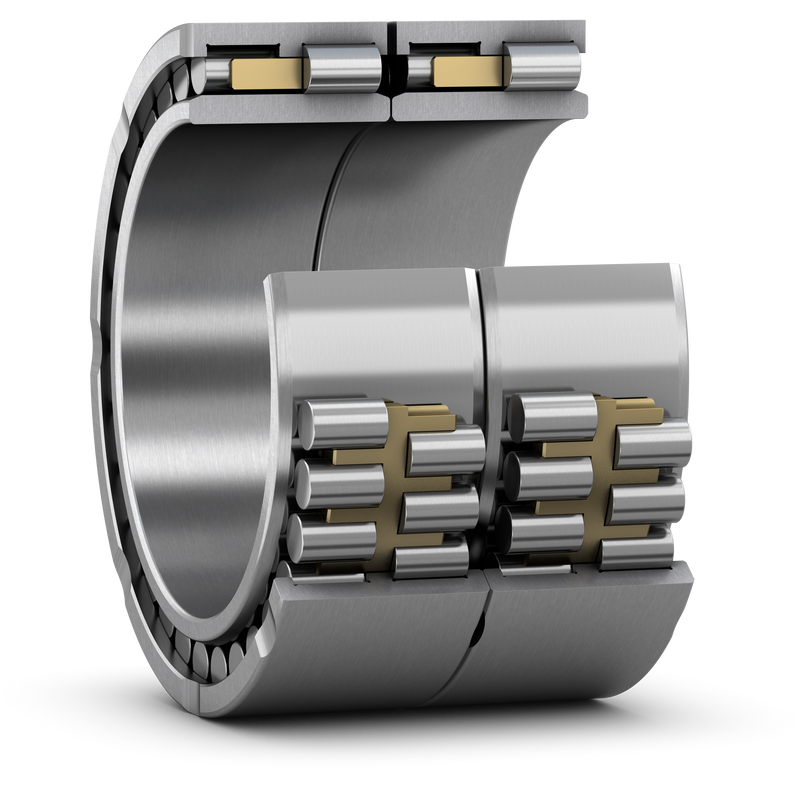

Four-row cylindrical roller bearings are designed to accommodate very heavy radial loads in combination with medium to high speeds. The bearings are optimized for operating conditions typically found in long product mills, where they can provide increased performance and reduced total cost of ownership. Different design combinations of outer rings, inner rings, flange rings, etc. are available to fulfil different application demands. An important feature is the separable design, which facilitates mounting and enables the bearing components to be interchanged.
| This bearing can replace |
314484 D
|
| SKF performance class |
SKF Explorer
|
| Design variant/feature |
BC4.7/W33WO
|
| Bore type |
Cylindrical
|
| d |
300 mm
|
Bore diameter |
|---|---|---|
| D |
420 mm
|
Outside diameter |
| B |
300 mm
|
Total bearing width over inner ring(s) |
| C |
300 mm
|
Total bearing width over outer ring(s) |
| D1 |
≈ 378.2 mm
|
Outer ring shoulder diameter |
| F |
332 mm
|
Raceway diameter inner ring |
| b |
11.1 mm
|
Width of annular groove |
| K |
6 mm
|
Diameter lubrication hole (outer ring) |
| r2 |
min. 6.4 mm
|
Corner radius/chamfer inner ring |
| α |
20 °
|
Chamfer angle inner ring |
| r3,4 |
min. 3 mm
|
Chamfer dimension on the outer ring |
| s |
3 mm
|
Permissible axial displacement from the normal position of one bearing ring relative to the other |
| Basic dynamic load rating | C |
4 400 kN
|
|---|---|---|
| Basic static load rating | C0 |
8 300 kN
|
| Fatigue load limit | Pu |
800 kN
|
| Mass bearing |
134 kg
|
