SIZE RANGE: 3 – 30 inch (80 mm – 750 mm)
MAX TEMP: 180°F (80°C)
MAX PRESSURE: 200 PSI

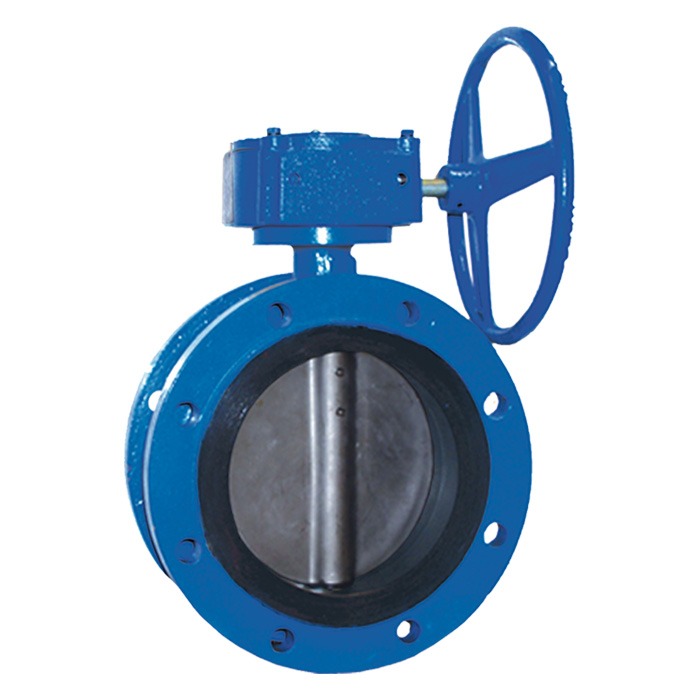

MODEL 45 (GEAR OPERATED) – Ductile iron flanged body. ASTM A536 ductile iron disc with stainless type 316 edge. Seat standard NBR (EPDM optional) vulcanized. Designed to AWWA standard C504, class 150B. Electric / pneumatic actuation available. MSS SP-67 compliant.
NSF 61 & 372 APPROVED
Direct mounting of actuator.
