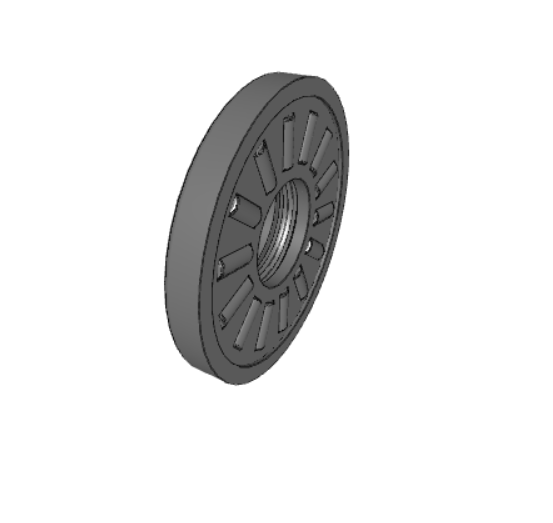

Needle roller thrust bearings are designed to accommodate heavy axial loads and peak loads in one direction. They provide a high degree of stiffness within a minimum axial space. The bearings consist of a needle roller and cage thrust assembly and a thrust washer with a centring flange. The flange facilitates mounting and accurately centres the washer radially. To accommodate combined radial and axial loads, the bearings can be combined with drawn cup needle roller bearings or needle roller bearings with machined rings.
| d |
20 mm
|
Bore diameter |
|---|---|---|
| D |
38 mm
|
Outside diameter |
| Dw |
2 mm
|
Diameter roller |
| Ea |
min. 22 mm
|
Raceway diameter (min.) roller and cage thrust assembly |
| Eb |
max. 34 mm
|
Raceway diameter (max.) roller and cage thrust assembly |
| D1 |
26 mm
|
Outsider diameter centring flange |
| B |
3.2 mm
|
Height without centring flange |
| B1 |
3.5 mm
|
Height centring flange |
| Basic dynamic load rating | C |
12 kN
|
|---|---|---|
| Basic static load rating | C0 |
47.5 kN
|
| Fatigue load limit | Pu |
5.6 kN
|
| Reference speed |
4 300 r/min
|
|
| Limiting speed |
8 500 r/min
|
| Mass bearing with a centring flange |
0.014 kg
|
