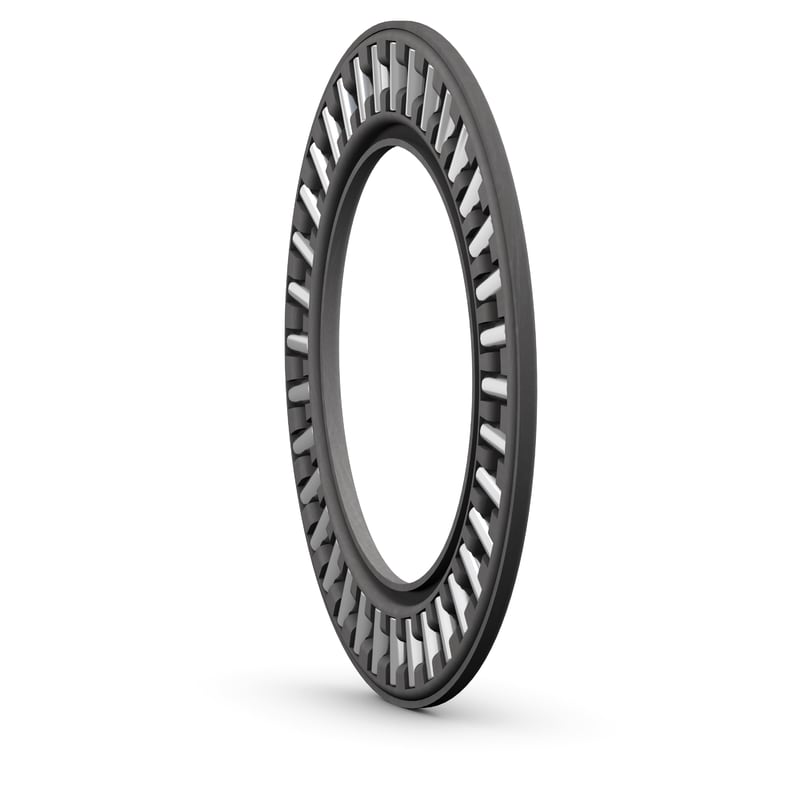

Needle roller and cage thrust assemblies are designed to accommodate heavy axial loads and peak loads in one direction. They provide a high degree of stiffness within a minimum axial space. In applications where the faces of adjacent machine components serve as raceways, needle roller thrust bearings take up no more space than a conventional thrust washer. The bearings can also be combined with bearing washers to create complete bearings.
| d |
17 mm
|
Bore diameter |
|---|---|---|
| D |
30 mm
|
Outside diameter |
| Dw |
2 mm
|
Diameter roller |
| Ea |
min. 19 mm
|
Raceway diameter (min.) roller and cage thrust assembly |
| Eb |
max. 29 mm
|
Raceway diameter (max.) roller and cage thrust assembly |
| Basic dynamic load rating | C |
11 kN
|
|---|---|---|
| Basic static load rating | C0 |
40.5 kN
|
| Fatigue load limit | Pu |
4.75 kN
|
| Reference speed |
4 500 r/min
|
|
| Limiting speed |
9 500 r/min
|
| Mass roller and cage thrust assembly |
0.0037 kg
|
