AL4022

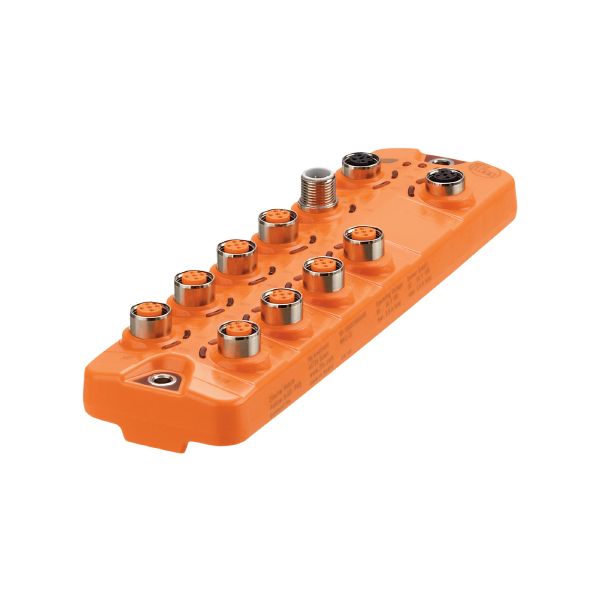

AL4022 - Image 2

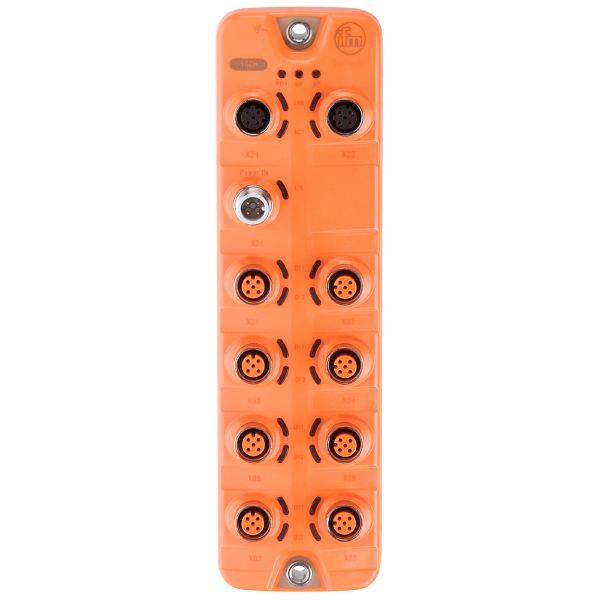

AL4022

Fieldbus module with digital inputs
Direct connection of sensors to the fieldbus for a clear wiring structure
High-frequency counter function integrated in the Ethernet module
Robust housing for use in harsh industrial environments

SKU: AL4022

$28,000.00

Application

Application	I/O modules for field applications
Daisy-chain function	fieldbus interface

Electrical data

Operating voltage [V]	20…30 DC; (US ; to SELV/PELV)
Current consumption [mA]	200…3900; (US)
Protection class	III

Sensor supply US

Max. current load total [A]	3.6

Inputs / outputs

Number of inputs and outputs	Number of digital inputs: 16

Inputs

Number of digital inputs	16; (type 2 according to IEC 61131-2)
Switching level high [V]	11…30
Switching level low [V]	0…5
Digital inputs protected against short circuits	yes

Software / programming

Parameter setting options

counter function

Functions and parameters

function	CTU (Up Counter), CTD (Down Counter), CTUD (Up-Down Counter), CTDIR (Direction Counter)
number	8 (1 counter for each port)
count frequency	4500 Hz
main counter	32 Bit (0…4.294.967.295)
batch counter	16 Bit (0…65.535)

Interfaces

Communication interface	Ethernet

Ethernet – EtherNet/IP

Transmission standard

10Base-T; 100Base-TX

Transmission rate

10 MBit/s; 100 MBit/s

Protocol

EtherNet/IP

Factory settings

IP address: 192.168.1.250

subnet mask: 255.255.255.0

gateway IP address: 0.0.0.0

MAC address: see type label

Note on interfaces

DHCP, BOOTP, static

DLR (Device Level Ring)

Supported network topologies: line

ring

Operating conditions

Ambient temperature [°C]

-25…60

Storage temperature [°C]

-25…85

Max. relative air humidity [%]

90

Protection

IP 65; IP 66; IP 67

Protection rating (NEMA 250)

6P

Pollution degree

2

Chemical media

ISO 16750-5	AA, BA, BD, HLP, CC, DB, DC, DD, CA
NEMA 250 5.13.1	AA

Tests / approvals

EMC

EN 61000-6-2
EN 61000-6-4

Shock resistance

DIN EN 60068-2-27

Vibration resistance

DIN EN 60068-2-64 2009-04
DIN EN 60068-2-6 2008-10

MTTF [years]

130

Mechanical data

Weight [g]	405.1
Materials	housing: PA orange; socket: brass nickel-plated
Sealing material	FKM

Remarks

Remarks

For further information please see the operating instructions.

Pack quantity

1 pcs.

Electrical connection – Ethernet

IN / OUT X21, X22	Connector: M12; coding: D; Sealing: FKM

Electrical connection – Process connection

Digital Input X01…X08	Connector: M12; coding: A; Sealing: FKM

Electrical connection – power supply

X31	Connector: M12; coding: A

AL4022-00_EN-US

Datasheet
EN PDF
