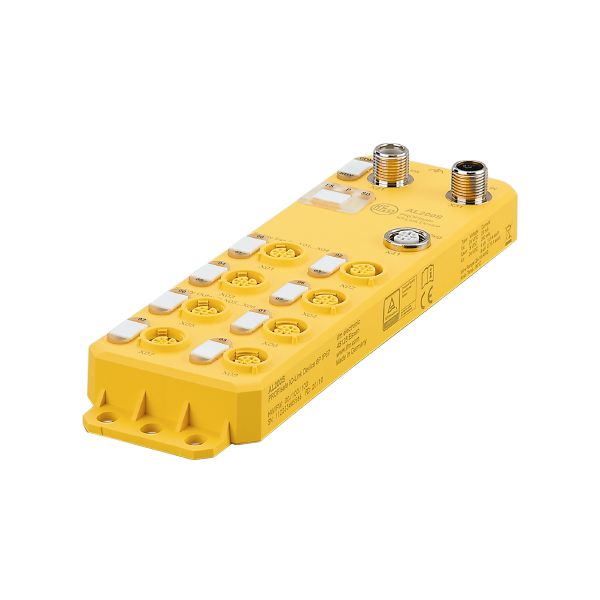

Application
| Design |
only for operation with IO-Link masters AL140x, AL1304 to AL1307 and Siemens PLCs S7-1200 and S7-1500 (except software controller and open controller) |
| Application |
I/O modules for field applications |
Electrical data
| Operating voltage [V] |
19.2…30.2 DC; (US ; to SELV/PELV) |
| Current consumption [mA] |
67; (US) |
| Protection class |
III |
| Additional voltage supply [V] |
19.2…30.2 DC; (UA) |
| Max. current consumption from additional supply [mA] |
34; (UA) |
Actuator supply UA
| Max. current load total [A] |
6 |
| Current rating per port [A] |
2 |
Inputs / outputs
| Total number of inputs and outputs |
12 |
Inputs
| Total number of inputs |
8 |
| Switching level high [V] |
11…30 |
| Switching level low [V] |
-30…5 |
| Digital inputs protected against short circuits |
yes |
Outputs
| Total number of outputs |
4 |
| Short-circuit proof |
yes |
Interfaces
| Communication interface |
IO-Link |
| Supported DeviceIDs |
| Type of operation |
DeviceID |
| Default |
1312 |
|
IO-Link Device
| Transmission type |
COM3 (230,4 kBaud) |
| IO-Link revision |
1.1 |
| SDCI standard |
IEC 61131-9 |
| SIO mode |
no |
Operating conditions
| Ambient temperature [°C] |
-25…60 |
| Storage temperature [°C] |
-40…85 |
| Max. relative air humidity [%] |
75 |
| Protection |
IP 65; IP 67 |
Tests / approvals
| EMC |
| EN 61000-6-2 |
|
| EN 61000-4-2 ESD |
6 kV CD / 8 kV AD |
| EN 61000-4-3 HF radiated |
10 V/m |
| EN 61000-4-4 Burst |
2 kV |
| EN 61000-4-5 Surge |
|
| EN 61000-4-6 HF conducted |
|
|
| Shock resistance |
|
| Vibration resistance |
| DIN EN 60068-2-64 2009-04 |
|
| DIN EN 60068-2-6 2008-10 |
|
|
Safety classification
| Mission time TM [h] |
175200 |
| Mission time TM (additional indication) |
|
Single channel
| Complies with the requirements |
| ISO 13849-1 PL d |
| IEC 61508 SIL 2 |
| IEC 62061 SIL 2 |
|
| PFH [1/h] |
1E-08 |
| PFD [1/h] |
1E-04 |
Dual channel
| Complies with the requirements |
| ISO 13849-1 PL e |
| IEC 61508 SIL 3 |
| IEC 62061 SIL 3 |
|
| PFH [1/h] |
1E-09 |
| PFD [1/h] |
1E-05 |
Mechanical data
| Weight [g] |
408.3 |
| Materials |
housing: PA; socket: brass nickel-plated |
Remarks
| Remarks |
| Safety classification depends on parameterisation and wiring (see operating instructions). |
|
| Pack quantity |
1 pcs. |

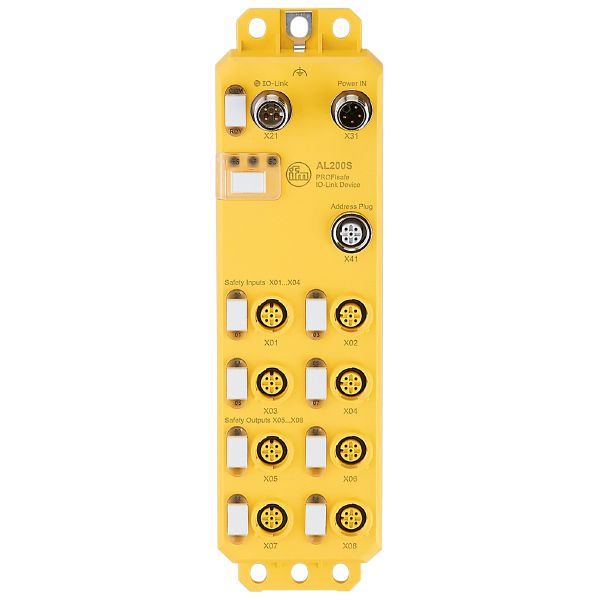

Electrical connection – Address Plug
| X41 |
Connector: M12; coding: A |
Electrical connection – IO-Link
| X21 |
Connector: M12; coding: A |
Electrical connection – Power IN
| X31 |
Connector: M12; coding: L |
Electrical connection – Safety Inputs
| X01…X04 |
Connector: M12; coding: A |
Electrical connection – Safety Outputs
| X05…X08 |
Connector: M12; coding: A |
