Application
| Application |

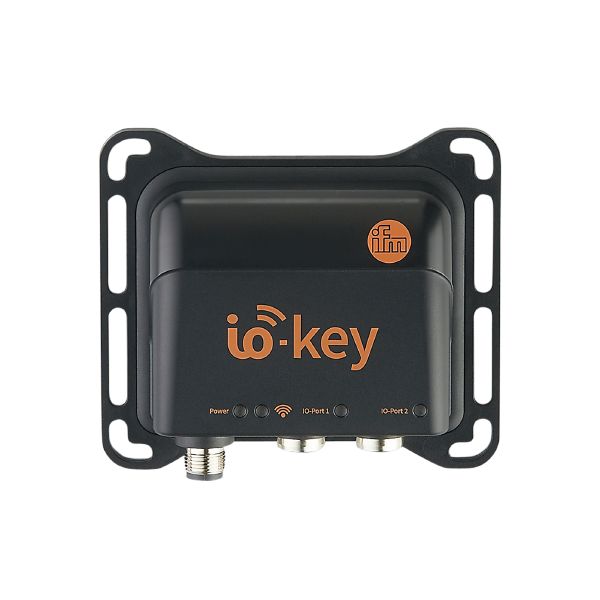

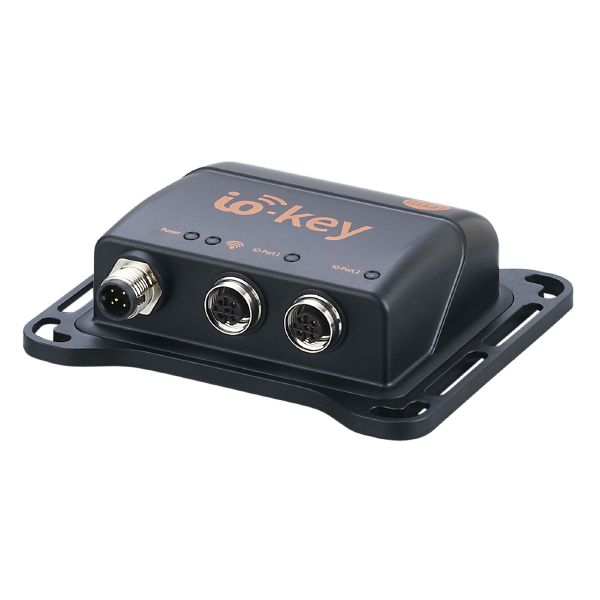

wireless IoT gateway with NarrowBand IoT data transmission; Sensor data collected and sent to the ifm cloud via radio transmission |
| Radio approval for |
EU/RED |
| Note on radio approval |
| The list of countries applying the European Radio Equipment Directive 2014/53/EU (RED) can be found under “Downloads”. |
|
Electrical data
| Operating voltage [V] |
18…30 DC |
| Current consumption [mA] |
< 1000 |
| Power consumption [W] |
8.6 |
| Protection class |
III |
| Reverse polarity protection |
yes |
| Operating frequency [MHz] |
NarrowBand-IoT: 800…900 MHz; 2G (GSM): 900/1800 MHz; SIM card onboard |
Inputs / outputs
| Number of inputs and outputs |
Number of digital outputs: 2 |
Outputs
| Number of digital outputs |
2 |
| Max. current load per output [mA] |
100 |
Software / programming
| Parameter setting options |
dashboard display with alarm functions via email or text message |
Interfaces
| Communication interface |
IO-Link; Mobile networks; Bluetooth |
Bluetooth
| Transmission standard |
BTLE |
| Frequency band |
2,4 GHz |
| Usage type |
service interface |
IO-Link
| Number of ports |
2 |
| Unterstützte IO-Link Revision |
1.1 |
| Transmission type |
COM1 (4,8 kBaud); COM2 (38,4 kBaud); COM3 (230,4 kBaud) |
Mobile networks
| Transmission standard |
NarrowBand-IoT; 2G quadband GSM |
Operating conditions
| Ambient temperature [°C] |
-25…60 |
| Storage temperature [°C] |
-40…60 |
| Max. height above sea level [m] |
3000 |
| Protection |
IP 65 |
Tests / approvals
| EMC |
| EN 301489-1 |
|
| EN 301489-17 |
|
| EN 301489-52 |
|
|
| Vibration resistance |
|
| Shock resistance |
|
| Radio approval |
EN 301511EN 301908-1EN 301908-13EN 300328 |
Mechanical data
| Weight [g] |
121 |
| Materials |
housing: ABS |
Displays / operating elements
| Display |
| power supply |
1 x LED, green |
| communication |
1 x LED |
| IO-Link port |
2 x LED |
|
Electrical connection – IO-Link
| IO-Link Port 1 |
Connector: 2 x M12; coding: A |
Electrical connection – power supply
| Power |
Connector: 1 x M12; coding: A |
