Application
| Design |

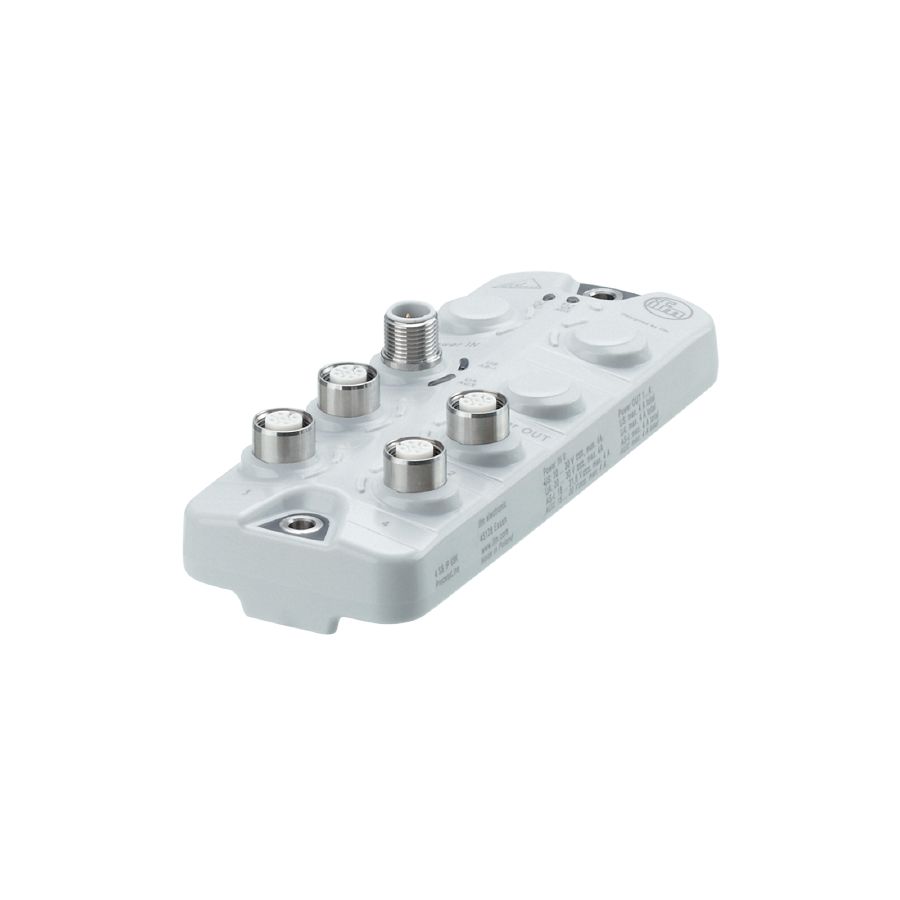

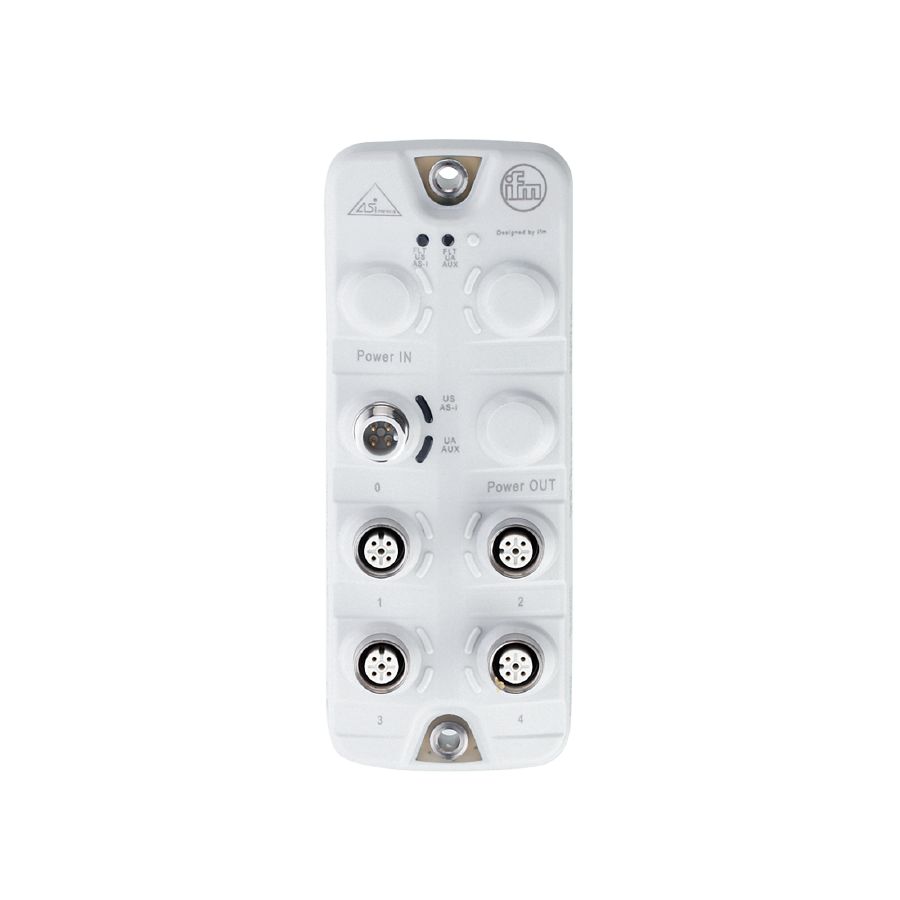

AS-i oder IO-Link Spannungsverteiler |
| Application |
hygienic and wet areas in the food industry |
Electrical data
| Protection class |
III |
| Overcurrent detection |
yes; (4400 mA ± 200 mA) |
AS-i operation
| Operating voltage [V] |
18…31.6 DC; (AS-i) |
| Current consumption [mA] |
4000; (AS-i) |
| Additional voltage supply [V] |
15…30 DC; (AUX) |
| Max. current consumption from additional supply [mA] |
4000; (AUX) |
IO-Link operation
| Operating voltage [V] |
20…30 DC; (US) |
| Current consumption [mA] |
4000; (US) |
| Additional voltage supply [V] |
20…30 DC; (UA) |
| Max. current consumption from additional supply [mA] |
4000; (UA) |
Operating conditions
| Ambient temperature [°C] |
-25…60 |
| Storage temperature [°C] |
-25…85 |
| Max. relative air humidity [%] |
90; (non condensing) |
| Max. height above sea level [m] |
4000 |
| Protection |
IP 65; IP 66; IP 67; IP 69K; (operation with stainless steel protective caps: IP 69K) |
| Protection rating (NEMA 250) |
6P |
| Pollution degree |
2 |
| Chemical media |
| ISO 16750-5 |
HLP, CC, DB, DC, DD, CA |
| NEMA 250 5.13.1 |
AA |
|
Tests / approvals
| EMC |
|
| Shock resistance |
|
| Vibration resistance |
| DIN EN 60068-2-64 |
|
| DIN EN 60068-2-6 |
|
|
| MTTF [years] |
379 |
Mechanical data
| Weight [g] |
284.8 |
| Dimensions [mm] |
152 x 59.3 x 38.4 |
| Materials |
housing: PA grey; plugs and sockets: stainless steel (1.4404 / 316L) |
Displays / operating elements
| Display |
| operation |
LED, green AS-i / AUX / US / UA |
| fault |
LED, red |
|
Electrical connection – Power IN
| AS-i operation |
Connector: M12; coding: A; Tightening torque: 0.6…0.8 Nm |
Electrical connection – Power OUT
| AS-i operation 1…4 |
Connector: M12; coding: A; Tightening torque: 0.6…0.8 Nm |
