$12,630.00

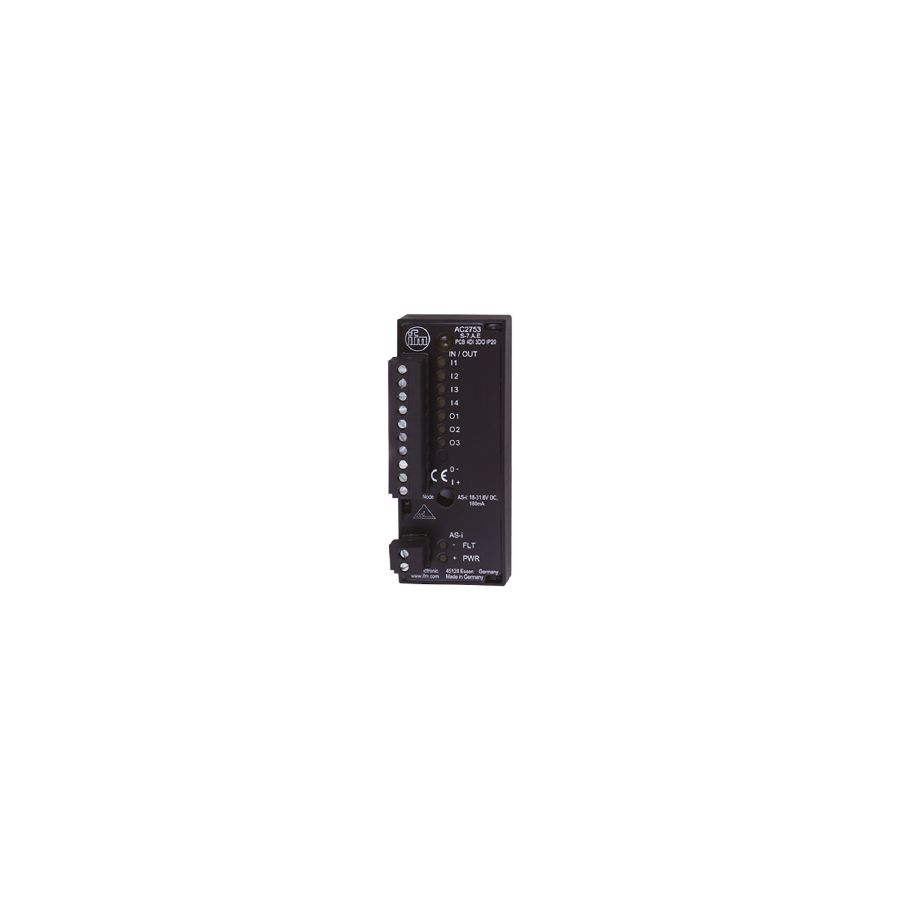

| Application | housing for panel mounting |
|---|
| Operating voltage [V] | 18…31.6 DC |
|---|---|
| Max. current consumption from AS-i [mA] | 180; (without sensors: < 30 mA; inputs and outputs active: < 180 mA) |
| Protection class | III |
| Max. current load total [A] | 0.15; (total current for all inputs and outputs supplied from AS-i: 150 mA) |
| Integrated watchdog | yes |
| Number of inputs and outputs | Number of digital inputs: 4; Number of digital outputs: 3 |
|---|
| Number of digital inputs | 4 |
|---|---|
| Input circuit of digital inputs | PNP |
| Sensor supply of the inputs | AS-i |
| Power supply [V] | 18…30; (DC) |
| Max. total current rating of inputs [mA] | 150 |
| Input current High [mA] | 6…10 |
| Input current Low [mA] | 0…2 |
| Switching level high [V] | > 11 |
| Digital inputs protected against short circuits | yes |
| Electrical design | PNP |
|---|---|
| Number of digital outputs | 3 |
| Circuit | PNP |
| Voltage range DC [V] | 18…30; (DC) |
| Max. current load per output [mA] | 100; (utilisation category DC-13 (control of electromagnets): 2,5 W (IEC 60947-5-1)) |
| Max. current load outputs total [A] | 0.15 |
| Short-circuit proof | yes |
| Electrically separated | yes |
| Actuator supply outputs | AS-i |
| Ambient temperature [°C] | -25…55 |
|---|---|
| Protection | IP 20 |
| EMC |
|
|---|
| AS-i version | 3.0 |
|---|---|
| Extended addressing mode | yes |
| AS-i profile | S-7.A.E |
| AS-i I/O configuration [hex] | 7 |
| AS-i ID code [hex] | A.E |
| AS-i certificate | 102401 |
| Weight [g] | 68 |
|---|---|
| Type of mounting | installation in a surface-mounted housing |
| Dimensions [mm] | 31.1 x 12 x 76.6 |
| Materials | housing: PC potted |
| Display |
|
|---|
| Remarks |
|
|||||||
|---|---|---|---|---|---|---|---|---|
| Pack quantity | 1 pcs. |
| screw terminals: |
Datasheet
EN PDF
