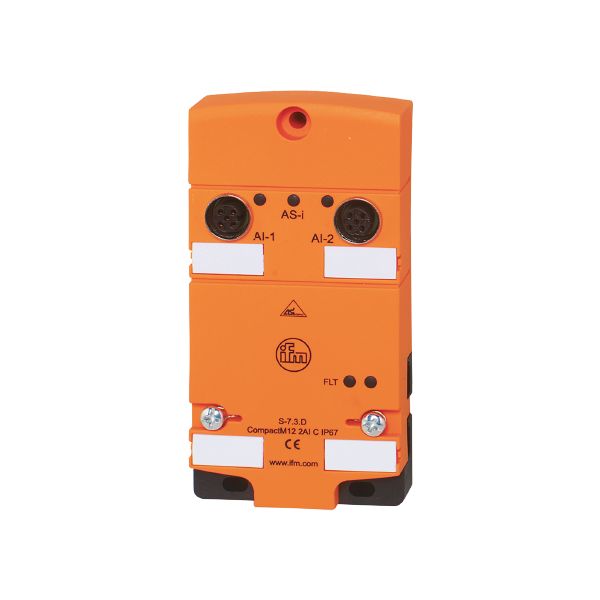

AC2403

AC2403

Easy to mount and wire
High shock and vibration resistance thanks to full potting
Clearly visible powerful LEDs for displaying operation, function and error
High protection rating for the requirements of harsh industrial environments
Robust M12 connectors for connecting sensors and actuators

SKU: AC2403

$20,410.00

Application

Application	field installation

Electrical data

Operating voltage [V]	26.5…31.6 DC
Max. current consumption from AS-i [mA]	250
Reverse polarity protection	yes

Inputs / outputs

Number of inputs and outputs	Number of analogue inputs: 2

Inputs

Max. total current rating of inputs [mA]	200
Number of analogue inputs	2; (Anschluss von 2- und 4-Draht-Sensoren)
Analogue input (current) [mA]	4…20

Operating conditions

Ambient temperature [°C]	-25…80
Storage temperature [°C]	-25…80
Max. relative air humidity [%]	90; (non condensing)
Max. height above sea level [m]	2000
Protection	IP 67; (when flat cables are used E7400x / E7401x)

Tests / approvals

EMC

EN 61000-6-2
EN 62026-2
EN 50581

MTTF [years]

167

UL approval

power supply

Class 2

AS-i classification

AS-i version	2.11; 3.0
AS-i addressing	IR addressing possible
Extended addressing mode	no
AS-i profile	S-7.3.D
AS-i I/O configuration [hex]	7
AS-i ID code [hex]	3.D
AS-i certificate	99201

Mechanical data

Weight [g]	277
Type of mounting	AS-i flat cables directly connectable
Materials	PA; socket: stainless steel (1.4404 / 316L); threaded inserts in the lower part: stainless steel (1.4404 / 316L); screws in the lower part: stainless steel (1.4578 / 316Cu); piercing contacts: CuSn6 nickel-plated and tin-plated

Displays / operating elements

Display

operation	LED, green Voltage AS-i
errors	LED, red
function	LED, yellow channels AI1, AI2

Electrical connection

Module connection	Flat cables

Accessories

Accessories (optional)

Protective cap: M12, E73004

Stainless steel sleeve, for installation in case of high mechanical stress , E70402

Remarks

Remarks

The module is exclusively supplied via the yellow AS-i cable.

When connecting a 2-wire or 3-wire sensor without own supply there has to be an external link between pin 3 and pin 4.

The inputs (pins 2 and 4) are electrically separated and have no connection to AS-i.

Pack quantity

1 pcs.

Electrical connection

	Connector: M12; coding: A

AC2403-00_EN-US

Datasheet
EN PDF
