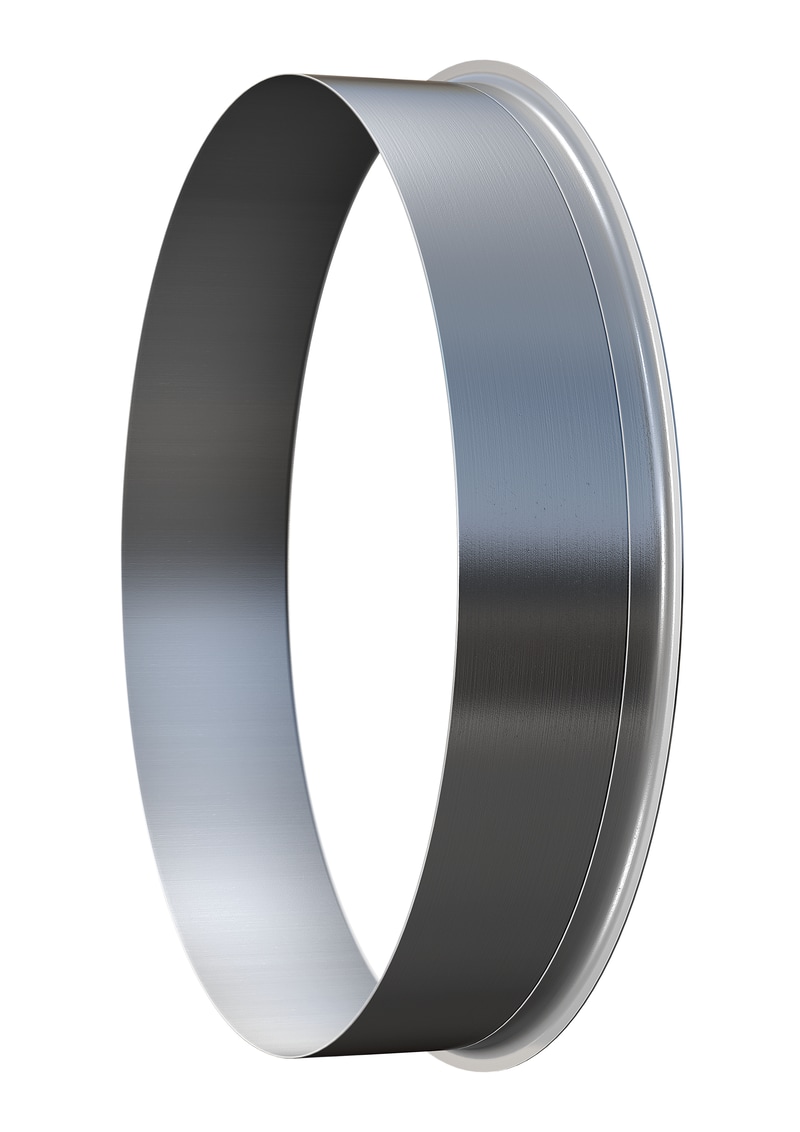

99334SKF Speedi-Sleeve
SKF Speedi-Sleeve provides an alternative to costly repairs for worn or damaged shafts. This thin-walled sleeve, specially developed by SKF, is simply positioned over the relevant part of the shaft and provides a smooth counterface that is optimized for radial shaft seals. Use of SKF Speedi-Sleeve can prevent the need for costly shaft treatments that may involve machining, hardening, plunge grinding or disassembly. SKF Speedi-Sleeve Gold is an enhanced version of standard SKF Speedi-Sleeve, offering improved resistance to abrasive wear.
| Type |
Standard
|
Dimensions
| d1 |
min. 84.79 mm
|
Shaft diameter range |
|---|---|---|
| d1 |
max. 85.01 mm
|
Shaft diameter range |
| d1 |
85.01 mm
|
Nominal bore diameter |
|---|---|---|
| D |
90.93 mm
|
Nominal outside diameter |
|
± 1.57 mm
|
Tolerance outside diameter D | |
| b |
12.67 mm
|
Nominal width |
|
± 0.8 mm
|
Tolerance width b | |
| b1 |
10.13 mm
|
Nominal width of plain sleeve (up to flange groove) |
|
± 0.8 mm
|
Tolerance width b1 | |
| B |
max. 36.35 mm
|
Installation distance |
| r |
max. 3.18 mm
|
Bushing radius (chamfer) between bore and side face |
| t |
0.25 mm
|
Nominal thickness |
