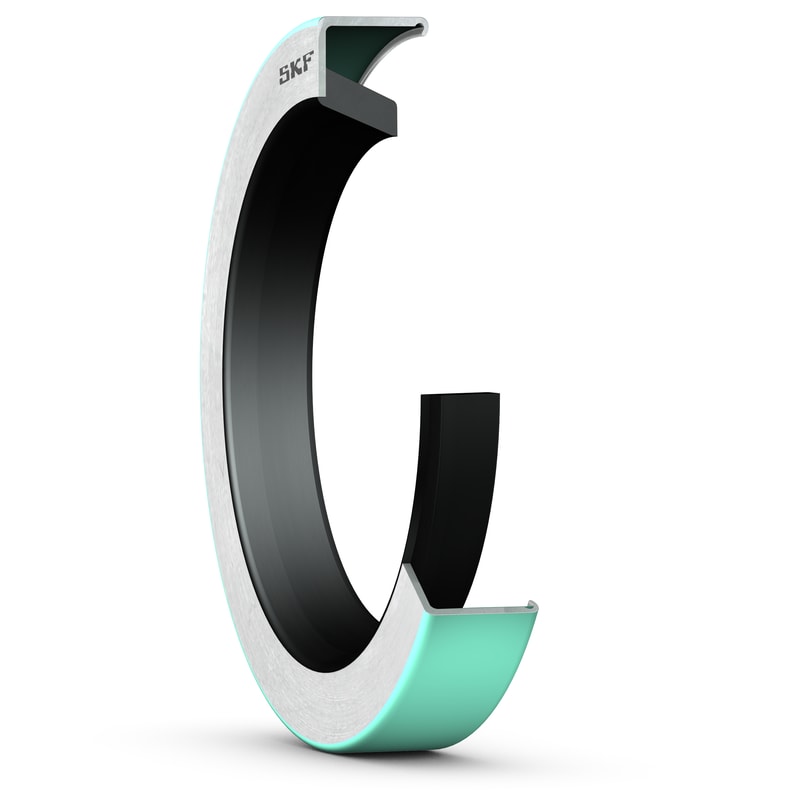

9298Radial shaft seal with metal case and single sealing lip, for grease
Radial shaft seals are used between rotating and stationary machine components, or between components in relative motion. HM14 seals are designed with a sealant coated metal case. They have a conventional single sealing lip made of elastomer. Typical applications include grease lubricated agriculture machinery.
| Type of outside diameter |
Metal-cased
|
| Lip material |
Nitrile rubber (NBR)
|
| Seal design |
HM14
|
Dimensions
| d1 |
23.83 mm
|
Shaft diameter |
|---|---|---|
| D |
38.075 mm
|
Housing bore diameter |
| b |
6.35 mm
|
Seal width |
Application and operating conditions
| Operating temperature |
min. -40 °C
|
| Operating temperature |
max. 100 °C
|
| Circumferential speed |
max. 4.83 m/s
|
| Rotational speed |
max. 3 872 r/min
|
| Pressure differential |
0.07 N/mm²
|
