SIZE RANGE: 2 – 10 inch (50 mm – 250 mm)
MAX TEMP: 200°F (93°C)
MAX PRESSURE: ASME 150#: 300 PSI at 150°F / ASME 300#: 500 PSI at 150°F

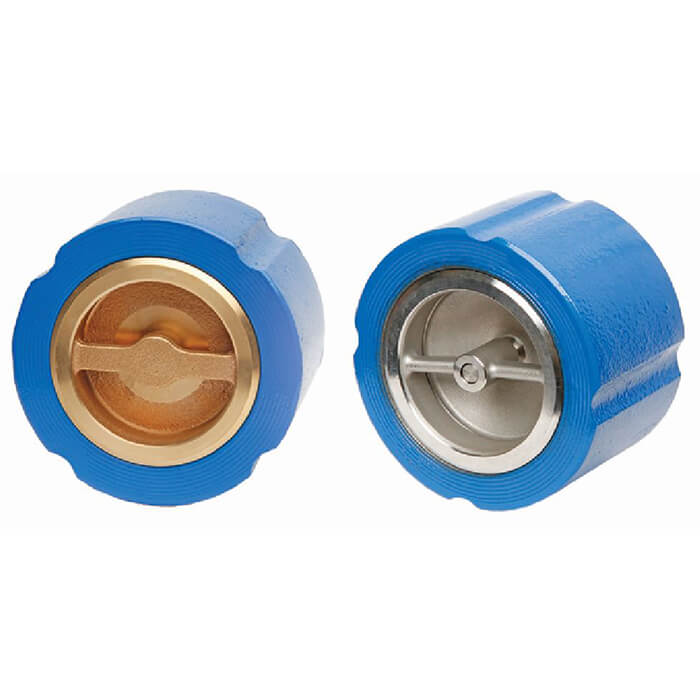

888R/888 – Epoxy coated ductile iron patented silent check, wafer style design with unleaded bronze poppet and seat. Designed to fit between class 150 and 300 flanges.
ASME 150#: Max Pressure 300 PSI at 150°F
ASME 300#: Max Pressure 500 PSI at 150°F
Consult factory for pressure rating standards.
| Part Number | Size | None | List Price |
|---|---|---|---|
| 2434R* | 2″” | 5 | $335 |
| 2434** | 2″” | 5 | $305 |
| 2432R* | 2 1/2″” | 7 | $370 |
| 2432** | 2 1/2″” | 7 | $336 |
| 2435R* | 3″” | 11 | $388 |
| 2435** | 3″” | 11 | $353 |
| 2436R* | 4″” | 18 | $509 |
| 2436** | 4″” | 18 | $462 |
| 2433R* | 5″” | 25 | $1,003 |
| 2433** | 5″” | 25 | $912 |
| 2437R* | 6″” | 36 | $916 |
| 2437** | 6″” | 36 | $832 |
| 2438R* | 8″” | 80 | $1,639 |
| 2438**Â *** | 8″” | 80 | $1,490 |
| 2439R* | 10″” | 129 | $2,480 |
| 2439****Â ***** | 10″” | 129 | $2,255 |
