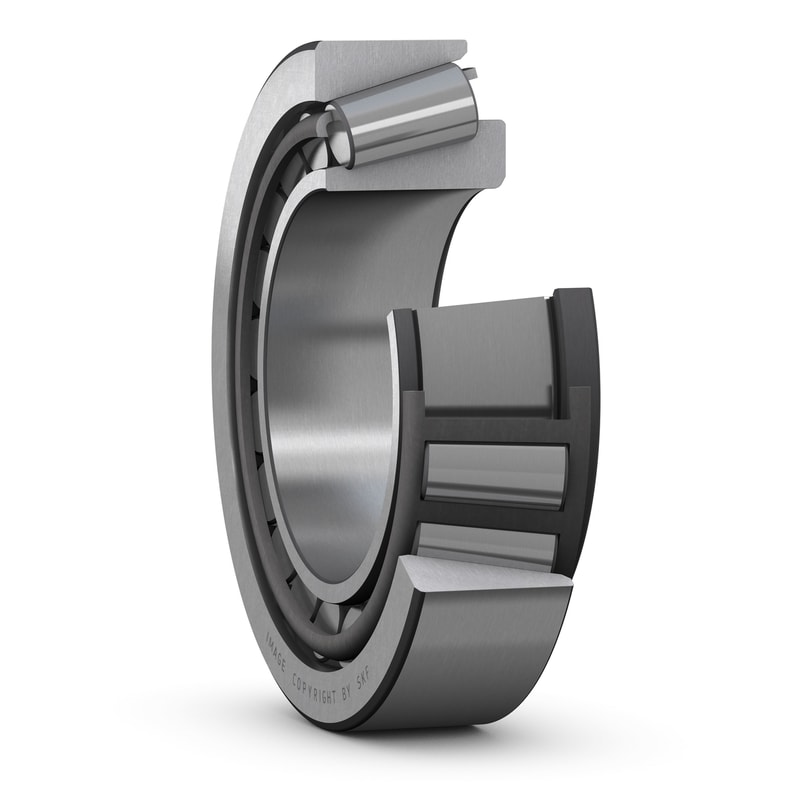

Single row tapered roller bearings, inch sizes, are designed to accommodate combined radial and axial loads and provide low friction during operation. The inner ring, with rollers and cage, can be mounted separately from the outer ring. These separable and interchangeable components facilitate mounting, dismounting and maintenance. By mounting one single row tapered roller bearing against another and applying a preload, a rigid bearing application can be achieved.
| Dimension series |
87000
|
| d |
190.5 mm
|
Bore diameter |
|---|---|---|
| D |
282.575 mm
|
Outside diameter |
| T |
50.8 mm
|
Total width |
| d1 |
≈ 232.3 mm
|
Shoulder diameter of inner ring |
| B |
47.625 mm
|
Width of inner ring |
| C |
36.512 mm
|
Width of outer ring |
| r1,2 |
min. 3.5 mm
|
Chamfer dimension of inner ring |
| r3,4 |
min. 3.3 mm
|
Chamfer dimension of outer ring |
| a |
54.772 mm
|
Distance side face to pressure point |
| da |
max. 213 mm
|
Diameter of shaft abutment |
|---|---|---|
| db |
min. 207 mm
|
Diameter of shaft abutment |
| Da |
min. 253 mm
|
Diameter of housing abutment |
| Da |
max. 267.5 mm
|
Diameter of housing abutment |
| Db |
min. 267 mm
|
Diameter of housing abutment |
| Ca |
min. 6 mm
|
Minimum width of space required in housing on large side face |
| Cb |
min. 14 mm
|
Minimum width of space required in housing on small side face |
| ra |
max. 3.5 mm
|
Radius of shaft fillet |
| rb |
max. 3.3 mm
|
Radius of housing fillet |
| Basic dynamic load rating | C |
427 kN
|
|---|---|---|
| Basic static load rating | C0 |
695 kN
|
| Fatigue load limit | Pu |
67 kN
|
| Reference speed |
1 600 r/min
|
|
| Limiting speed |
2 000 r/min
|
|
| Limiting value | e |
0.43
|
| Calculation factor | Y |
1.4
|
| Calculation factor | Y0 |
0.8
|
| Mass |
9.57 kg
|
