SIZE RANGE: 1/2 – 8 inch (15 mm – 200 mm)
MAX TEMP: Metal Seating only 400°F (200C)*
MAX PRESSURE: 300 PSI*

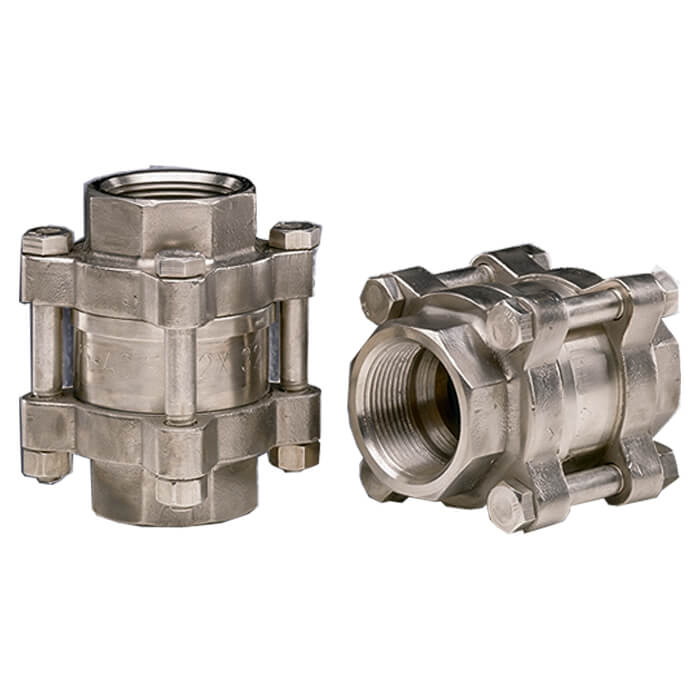

812XT – All 316 stainless steel, threaded 3 piece check valve and body. Metal to metal seating, Teflon O-ring,
1 ½””– 8″” available with NITRILE (Buna-N) or VITON seal optional. 2″”– 6″” available with socket weld connection, add 25% to list, to order replace “”T”” from the end of part number with “”S””.
Temp Max: Metal Seating only 400°F (200C)*
Pressure Max: 300 PSI*
(Center piece to the valve above)
812J: 300 psi / 21 bar
812J: 400ºF / 200ºC
| Part Number | Size | None | List Price |
|---|---|---|---|
| 2420XT | 1/2″” | 0.9 | $184 |
| 2421XT | 3/4″” | 1.5 | $214 |
| 2422XT | 1″” | 2.1 | $263 |
| 2423XT | 1 1/4″” | 3.5 | $399 |
| 2424XT | 1 1/2″” | 5.3 | $515 |
| 2425XT | 2″” | 7.5 | $711 |
| 2426XT | 2 1/2″” | 19 | $876 |
| 2427XT | 3″” | 24 | $1,273 |
| 2428XT | 4″” | 38 | $2,113 |
| 2430XT | 6″” | 77 | $5,394 |
| 2431XT* | 8″” | 136 | $9,003 |
