SIZE RANGE: 1 – 6 inch (50 mm – 150 mm)
MAX TEMP: 180°F (80°C)
MAX PRESSURE: 600 PSI

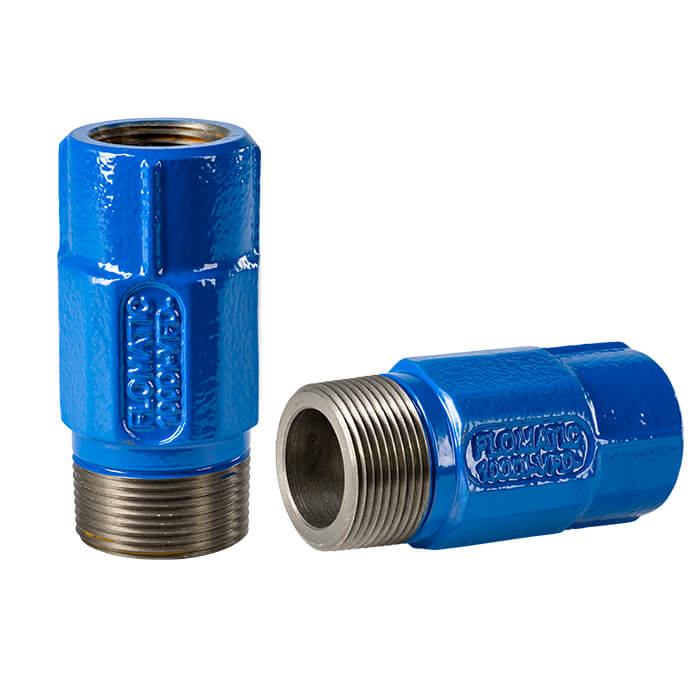

80MDI-VFD – High strength epoxy coated ductile iron body, high strength poppet and guide with threaded male x female NPT connection. Features a NITRILE (Buna-N) seal, stainless steel shaft, and ductile iron poppet. Designed for vertical or horizontal applications.
| Part Number | Size | None | List Price |
|---|---|---|---|
| 4221DIVFD | 1 1/4″” M x 1″” F | 1 | $42.89 |
| 4242DIVFD | 1 1/4″” M x 1 1/4″” F | 1.5 | $60.63 |
| 4084VFD* | 2″” M x 2″” F | 4 | $282 |
| 4084SVFD | 2″”M x 2″”F | 4 | $329 |
| 4083VFD | 3″”M x 3″”F | 12 | $560 |
| 4077VFD | 4″”M x 4″”F | 27 | $796 |
| 4075VFD | 5″”M x 5″”F | 50 | $1,397 |
| 4087VFD | 6″”M x 5″”F | 52 | $1,409 |
| 4081VFD | 6″”M x 6″”F | 63 | $1,909 |
