SIZE RANGE: 3 – 8 inch (80 mm – 200 mm) 8 round threads are NOT API certified.
MAX TEMP: 180°F (80°C)
MAX PRESSURE: 600 PSI
80DI8R-VFD 8 Round Line Pipe Threads –

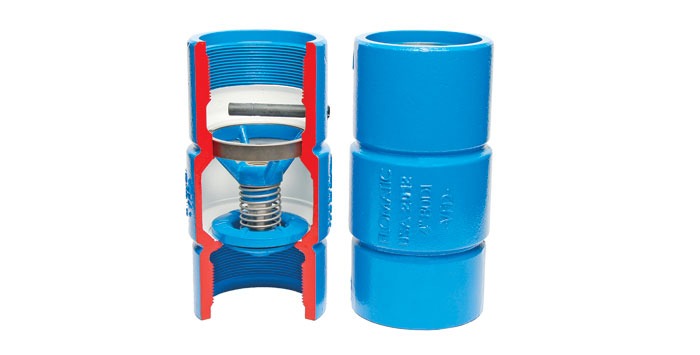

High strength epoxy coated ductile iron patented body, poppet and guide with 8 round connection. Features a NITRILE (Buna-N) seal, with stainless steel shaft and a ductile iron poppet. Designed for vertical or horizontal applications.
Contact factory for thread specifications.
Pressure Max: 600 PSI
Temp Max: 180°F (80°C)
| Part Number | Size | None | List Price |
|---|---|---|---|
| 7938-1VFD | 3″” | 12 | $1,450 |
| 7939-1VFD | 4″” | 27 | $1,571 |
| 4088-1VFD | 5″” | 40 | $2,578 |
| 4089-1VFD | 6″” | 58 | $3,547 |
| 4090-1VFD | 8″” | 84 | $6,087 |
