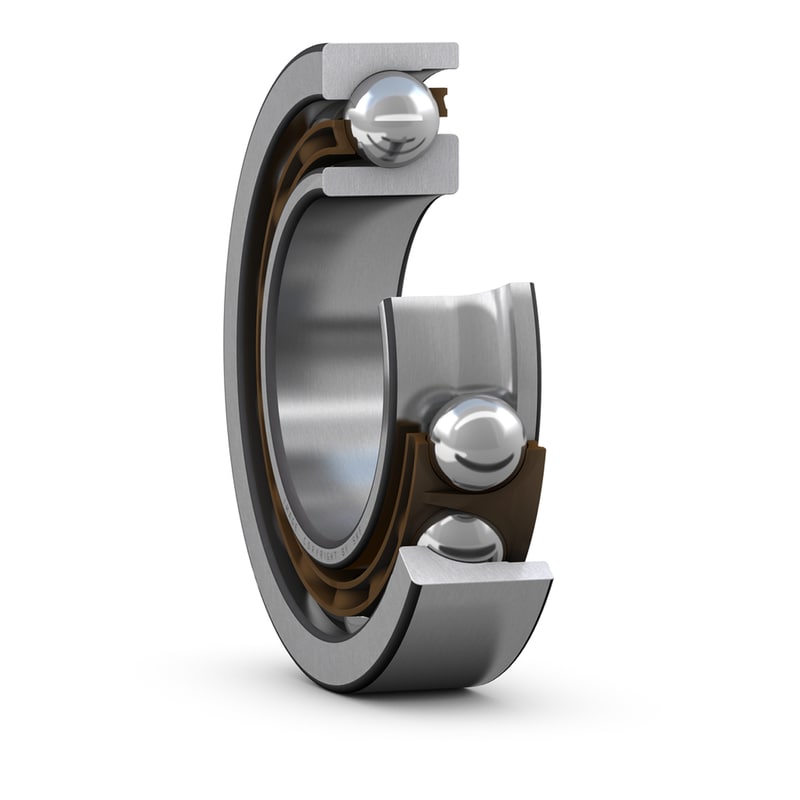

These single row angular contact ball bearings can accommodate radial and axial loads acting simultaneously, where the axial load acts in one direction only. They can operate at high speeds and, depending on the variant, even very high speeds. They are more suitable than deep groove ball bearings for supporting large axial forces acting in one direction.
| d |
15 mm
|
Bore diameter |
|---|---|---|
| D |
42 mm
|
Outside diameter |
| B |
13 mm
|
Width |
| d1 |
≈ 26 mm
|
Shoulder diameter of inner ring (large side face) |
| d2 |
≈ 20.73 mm
|
Shoulder diameter of inner ring (small side face) |
| D1 |
≈ 32.6 mm
|
Shoulder diameter of outer ring (large side face) |
| a |
18.6 mm
|
Distance side face to pressure point |
| r1,2 |
min. 1 mm
|
Chamfer dimension |
| r3,4 |
min. 0.6 mm
|
Chamfer dimension |
| da |
min. 21 mm
|
Diameter of shaft abutment |
|---|---|---|
| Da |
max. 36 mm
|
Abutment diameter housing |
| Db |
max. 38 mm
|
Diameter of housing abutment |
| ra |
max. 1 mm
|
Radius of fillet |
| rb |
max. 0.6 mm
|
Radius of fillet |
| Basic dynamic load rating | C |
13 kN
|
|---|---|---|
| Basic static load rating | C0 |
6.7 kN
|
| Fatigue load limit | Pu |
0.28 kN
|
| Reference speed |
22 000 r/min
|
|
| Limiting speed |
20 000 r/min
|
|
| Minimum axial load factor | A |
0.000907
|
| Minimum radial load factor | kr |
0.1
|
| Limiting value | e |
1.14
|
| Calculation factor (single, tandem) | X |
0.35
|
|---|---|---|
| Calculation factor (single, tandem) | Y0 |
0.26
|
| Calculation factor (single, tandem) | Y2 |
0.57
|
| Calculation factor (back-to-back, face-to-face) | X |
0.57
|
|---|---|---|
| Calculation factor (back-to-back, face-to-face) | Y0 |
0.52
|
| Calculation factor (back-to-back, face-to-face) | Y1 |
0.55
|
| Calculation factor (back-to-back, face-to-face) | Y2 |
0.93
|
| Mass |
0.08 kg
|
