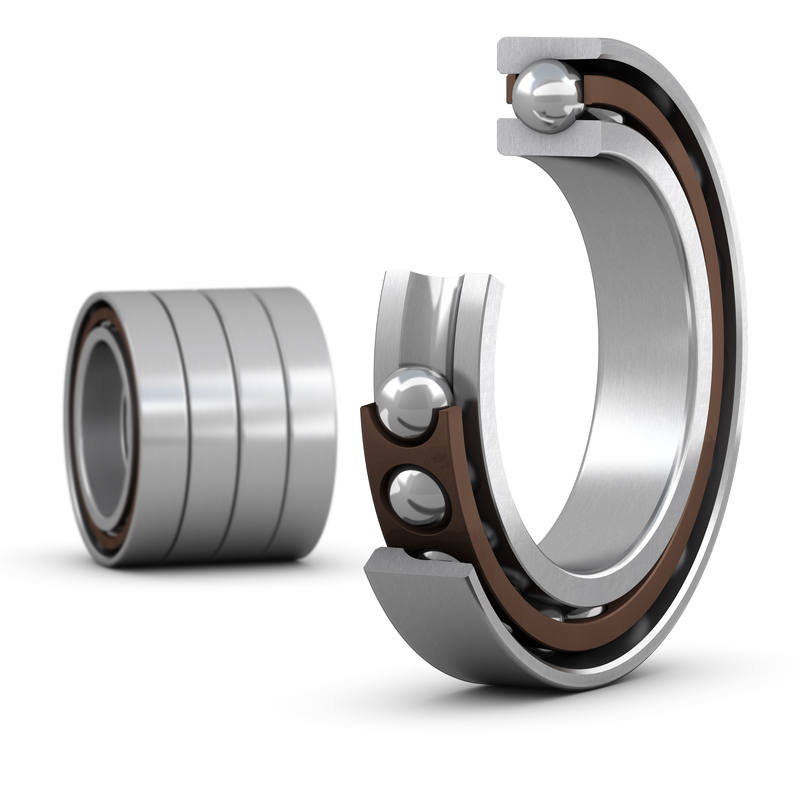

These sets of four matched super-precision angular contact ball bearings are available as universally matchable bearings or in preconfigured arrangements. Sets of four bearings arranged in tandem need to be mounted against a single bearing, or a set of bearings in tandem, to achieve the desired preload. All the other arrangements are available in different preload classes and correct mounting results in preload within a predetermined range, without the need for shims or similar devices. The bore and outside diameters of the bearings are matched to within a maximum of one-third of the permitted diameter tolerance, to provide better load distribution than single universally matchable bearings.
| Universal matching bearing(s) |
No
|
| d |
120 mm
|
Bore diameter |
|---|---|---|
| D |
215 mm
|
Outside diameter |
| B |
160 mm
|
Width |
| d1 |
150.3 mm
|
Shoulder diameter of inner ring (large side face) |
| r1,2 |
min. 2.1 mm
|
Chamfer dimension |
| r3,4 |
min. 1.1 mm
|
Chamfer dimension |
| Basic dynamic load rating | C |
527 000 N
|
|---|---|---|
| Basic static load rating | C0 |
765 000 N
|
| Fatigue load limit | Pu |
25 000 N
|
| Attainable speeds |
Contact SKF for the attainable speeds
|
|
| Ball diameter | Dw |
30.162 mm
|
| Number of rows | i |
4
|
| Preload class |
A
|
|
| Preload | G |
1 500 N
|
| Axial stiffness |
278 N/µm
|
| Correction factor dependent on bearing series and size | f |
1.08
|
|---|---|---|
| Correction factor dependent on contact angle | f1 |
1
|
| Correction factor, preload class A | f2A |
1
|
| Correction factor for hybrid bearings | fHC |
1
|
| Mass |
21.7 kg
|
