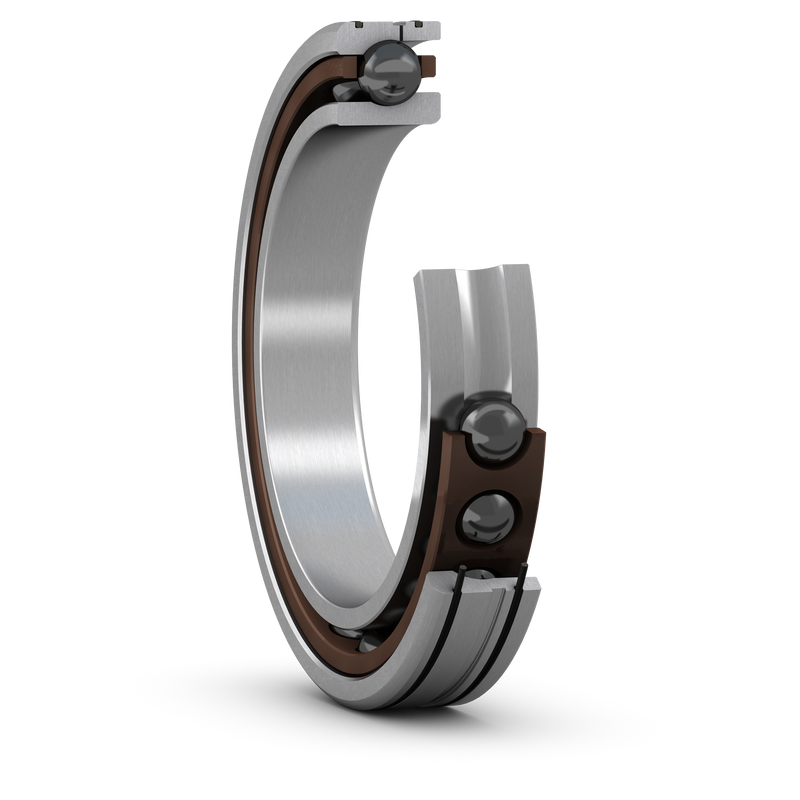

These super-precision, high-speed, E design, single row angular contact ball bearings accommodate radial and axial loads acting simultaneously, where the axial load acts in one direction only. They are designed for high-speed operation and, compared to SKF B design high-speed bearings, have a slightly higher speed capability and can accommodate heavier loads. Being universally matchable, they can be used together in arrangements to provide effective load sharing, within a predetermined preload range, without the use of shims or similar devices. They have two lubrication holes in their outer rings, an annular groove, and two annular O-ring grooves in their outer rings.
| Universal matching bearing(s) |
Yes, back-to-back (<>), face-to-face (><) or tandem (>>)
|
| d |
35 mm
|
Bore diameter |
|---|---|---|
| D |
55 mm
|
Outside diameter |
| B |
10 mm
|
Width |
| d1 |
41.7 mm
|
Shoulder diameter of inner ring (large side face) |
| d2 |
40.2 mm
|
Shoulder diameter of inner ring (small side face) |
| D1 |
48.29 mm
|
Shoulder diameter of outer ring (large side face) |
| b |
1.6 mm
|
Width of lubrication groove |
| C1 |
5.1 mm
|
Distance from outer ring side face to lubrication groove / lubrication hole |
| C2 |
1.8 mm
|
Distance from outer ring side face to O-ring groove |
| C3 |
1.2 mm
|
Distance from outer ring side face to O-ring groove |
| r1,2 |
min. 0.6 mm
|
Chamfer dimension |
| r3,4 |
min. 0.3 mm
|
Chamfer dimension |
| a |
15.5 mm
|
Distance from side face to pressure point |
| da |
min. 38.2 mm
|
Diameter of shaft abutment |
|---|---|---|
| db |
min. 37 mm
|
Diameter of shaft abutment |
| Da |
max. 51.8 mm
|
Diameter of housing abutment |
| Db |
max. 53 mm
|
Diameter of housing abutment |
| ra |
max. 0.6 mm
|
Radius of fillet |
| rb |
max. 0.3 mm
|
Radius of fillet |
| Basic dynamic load rating | C |
7.28 kN
|
|---|---|---|
| Basic static load rating | C0 |
4.4 kN
|
| Fatigue load limit | Pu |
0.137 kN
|
| Attainable speeds |
Contact SKF for the attainable speeds
|
|
| Contact angle | α |
25 °
|
| Ball diameter | Dw |
5.556 mm
|
| Number of rows | i |
1
|
| Number of balls (per bearing) | z |
19
|
| Reference grease quantity (per bearing) | Gref |
0.8 cm³
|
| Preload class |
A
|
|
| Preload when unmounted | G |
66 N
|
| Axial stiffness |
77 N/µm
|
| Correction factor dependent on bearing series and size | f |
1.05
|
|---|---|---|
| Correction factor dependent on contact angle | f1 |
0.98
|
| Correction factor, preload class A | f2A |
1
|
| Correction factor for hybrid bearings | fHC |
1.01
|
| Limiting value | e |
0.68
|
|---|---|---|
| Axial load factor (single, tandem) | Y1 |
0
|
| Axial load factor (single, tandem) | Y2 |
0.87
|
| Axial load factor (single, tandem) | Y0 |
0.38
|
| Radial load factor (single, tandem) | X1 |
1
|
| Radial load factor (single, tandem) | X2 |
0.41
|
| Radial load factor (single, tandem) | X0 |
0.5
|
| Axial load factor (back-to-back, face-to-face) | Y1 |
0.92
|
| Axial load factor (back-to-back, face-to-face) | Y2 |
1.41
|
| Axial load factor (back-to-back, face-to-face) | Y0 |
0.76
|
| Radial load factor (back-to-back, face-to-face) | X1 |
1
|
| Radial load factor (back-to-back, face-to-face) | X2 |
0.67
|
| Radial load factor (back-to-back, face-to-face) | X0 |
1
|
| Mass |
0.067 kg
|
