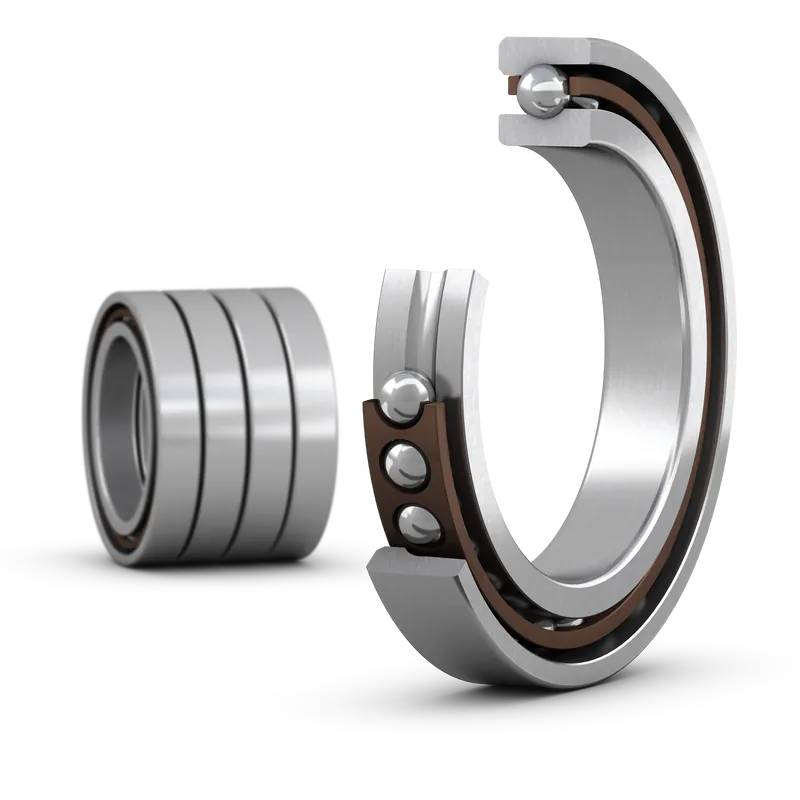

Single row angular contact ball bearings can accommodate radial and axial loads acting simultaneously, where the axial load acts in one direction only. They can operate at high speeds and, depending on the variant, even very high speeds. They are more suitable than deep groove ball bearings for supporting large axial forces acting in one direction.
| Universal matching bearing(s) |
No
|
| d |
50 mm
|
Bore diameter |
|---|---|---|
| D |
80 mm
|
Outside diameter |
| B |
16 mm
|
Width |
| d1 |
60.25 mm
|
Shoulder diameter of inner ring (large side face) |
| d2 |
57.9 mm
|
Shoulder diameter of inner ring (small side face) |
| D1 |
69.75 mm
|
Shoulder diameter of outer ring (large side face) |
| r1,2 |
min. 1 mm
|
Chamfer dimension |
| r3,4 |
min. 0.6 mm
|
Chamfer dimension |
| a |
23.3 mm
|
Distance from side face to pressure point |
| da |
min. 54.6 mm
|
Diameter of shaft abutment |
|---|---|---|
| db |
min. 54.6 mm
|
Diameter of shaft abutment |
| Da |
max. 75.4 mm
|
Diameter of housing abutment |
| Db |
max. 75.8 mm
|
Diameter of housing abutment |
| ra |
max. 1 mm
|
Radius of fillet |
| rb |
max. 0.6 mm
|
Radius of fillet |
| Basic dynamic load rating | C |
14.8 kN
|
|---|---|---|
| Basic static load rating | C0 |
10 kN
|
| Fatigue load limit | Pu |
0.425 kN
|
| Attainable speed for grease lubrication |
23 000 r/min
|
|
| Contact angle | α |
25 °
|
| Ball diameter | Dw |
7.938 mm
|
| Number of rows | i |
1
|
| Number of balls (per bearing) | z |
21
|
| Reference grease quantity (per bearing) | Gref |
4.1 cm³
|
| Preload, class A | GA |
130 N
|
|---|---|---|
| Axial stiffnes for preload A (sets of two brgs back to back or face to face) |
104 N/µm
|
| Correction factor dependent on bearing series and size | f |
1.08
|
|---|---|---|
| Correction factor dependent on contact angle | f1 |
0.99
|
| Correction factor, preload class A | f2A |
1
|
| Correction factor for hybrid bearings | fHC |
1
|
| Limiting value | e |
0.68
|
|---|---|---|
| Axial load factor (single, tandem) | Y2 |
0.87
|
| Axial load factor (back-to-back, face-to-face) | Y1 |
0.92
|
| Axial load factor (back-to-back, face-to-face) | Y2 |
1.41
|
| Mass |
0.25 kg
|
