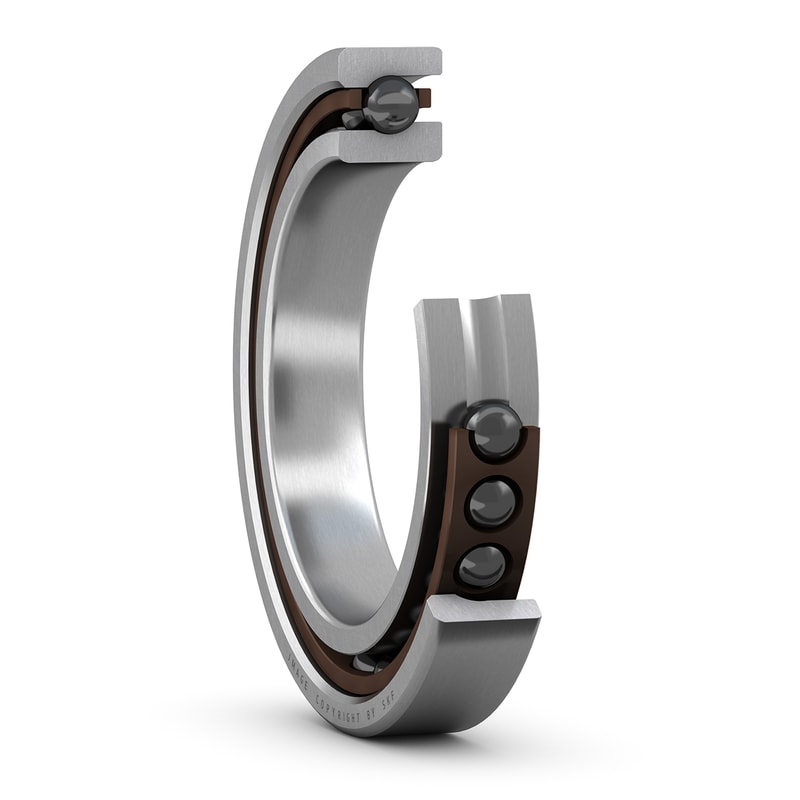

These super-precision, high-speed, E design, single row angular contact ball bearings accommodate radial and axial loads acting simultaneously, where the axial load acts in one direction only. They are designed for high-speed operation and, compared to SKF B design high-speed bearings, have a slightly higher speed capability and can accommodate heavier loads. Being universally matchable, they can be used together in arrangements to provide effective load sharing, within a predetermined preload range, without the use of shims or similar devices. They have two lubrication holes in their outer rings.
| Universal matching bearing(s) |
Yes, back-to-back (<>), face-to-face (><) or tandem (>>)
|
| d |
20 mm
|
Bore diameter |
|---|---|---|
| D |
42 mm
|
Outside diameter |
| B |
12 mm
|
Width |
| d1 |
26.6 mm
|
Shoulder diameter of inner ring (large side face) |
| d2 |
24.8 mm
|
Shoulder diameter of inner ring (small side face) |
| D1 |
34.21 mm
|
Shoulder diameter of outer ring (large side face) |
| K |
0.5 mm
|
Diameter of lubrication hole |
| C1 |
3.67 mm
|
Distance from outer ring side face to lubrication groove / lubrication hole |
| r1,2 |
min. 0.6 mm
|
Chamfer dimension |
| r3,4 |
min. 0.3 mm
|
Chamfer dimension |
| a |
10.9 mm
|
Distance from side face to pressure point |
| Diameter of shaft abutment | da |
min. 22 mm
|
|---|---|---|
| Diameter of shaft abutment | db |
min. 22 mm
|
| Diameter of housing abutment | Da |
max. 40 mm
|
| Diameter of housing abutment | Db |
max. 39.6 mm
|
| Radius of fillet | ra |
max. 0.6 mm
|
| Radius of fillet | rb |
max. 0.3 mm
|
| Basic dynamic load rating | C |
7.41 kN
|
|---|---|---|
| Basic static load rating | C0 |
3.35 kN
|
| Fatigue load limit | Pu |
0.104 kN
|
| Attainable speeds |
Contact SKF for the attainable speeds
|
|
| Contact angle | α |
18 °
|
| Ball diameter | Dw |
6.35 mm
|
| Number of rows | i |
1
|
| Number of balls (per bearing) | z |
12
|
| Reference grease quantity (per bearing) | Gref |
1.1 cm³
|
| Preload class |
A
|
|
| Preload when unmounted | G |
48 N
|
| Axial stiffness |
33 N/µm
|
| Correction factor dependent on bearing series and size | f |
1.04
|
|---|---|---|
| Correction factor dependent on contact angle | f1 |
1
|
| Correction factor, preload class A | f2A |
1
|
| Correction factor for hybrid bearings | fHC |
1.01
|
| Calculation factor for equivalent loads | f0 |
7.2
|
|---|---|---|
| Additional factors for equivalent loads |
Refer to Notes 1 and 2 below
|
|
| Axial load factor (back-to-back, face-to-face) | Y1 |
1.54
|
| Axial load factor (back-to-back, face-to-face) | Y2 |
1.63
|
| Axial load factor (back-to-back, face-to-face) | Y0 |
0.85
|
| Radial load factor (back-to-back, face-to-face) | X1 |
1
|
| Radial load factor (back-to-back, face-to-face) | X2 |
0.7
|
| Radial load factor (back-to-back, face-to-face) | X0 |
1
|
| Mass |
0.056 kg
|
