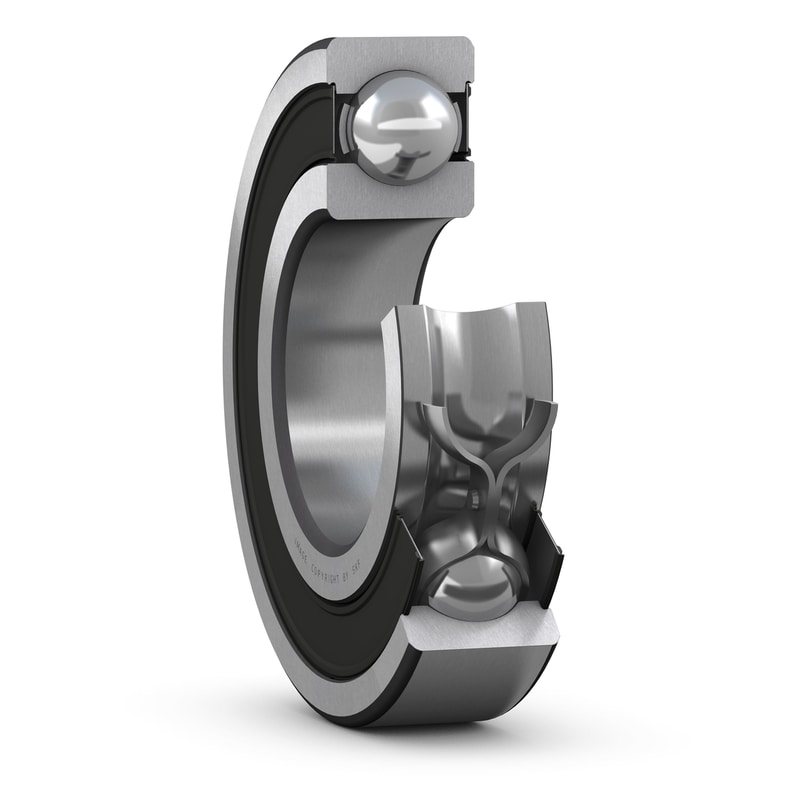

Single row deep groove ball bearings with seals or shields are particularly versatile, have low friction and are optimized for low noise and low vibration, which enables high rotational speeds. They accommodate radial and axial loads in both directions, are easy to mount, and require less maintenance than many other bearing types. The integral sealing can significantly prolong bearing service life because it keeps lubricant in the bearings and contaminants out.
| d |
120 mm
|
Bore diameter |
|---|---|---|
| D |
260 mm
|
Outside diameter |
| B |
55 mm
|
Width |
| d1 |
≈ 164.6 mm
|
Shoulder diameter |
| D2 |
≈ 220.1 mm
|
Recess diameter |
| r1,2 |
min. 3 mm
|
Chamfer dimension |
| da |
min. 134 mm
|
Diameter of shaft abutment |
|---|---|---|
| da |
max. 164 mm
|
Diameter of shaft abutment |
| Da |
max. 246 mm
|
Diameter of housing abutment |
| ra |
max. 2.5 mm
|
Radius of shaft or housing fillet |
| Basic dynamic load rating | C |
208 kN
|
|---|---|---|
| Basic static load rating | C0 |
186 kN
|
| Fatigue load limit | Pu |
5.7 kN
|
| Limiting speed |
1 700 r/min
|
|
| Minimum load factor | kr |
0.03
|
| Calculation factor | f0 |
13.5
|
| Mass bearing |
12.7 kg
|
| Dimensional tolerances |
Normal
|
| Radial run-out |
Normal
|
