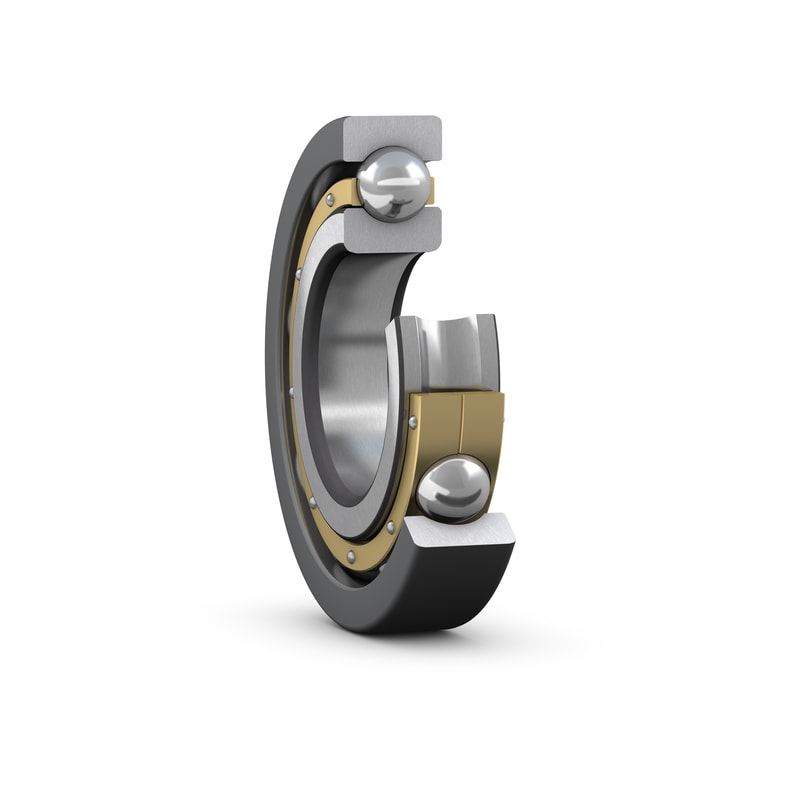

INSOCOAT single row deep groove ball bearings feature an electrically insulating coating on the outside surfaces of either the inner or outer bearing ring. This keeps stray electric currents from passing through the bearings, protecting them against electrical erosion damage and helping prevent lubricant degradation resulting from electric current discharge. As with deep groove ball bearings generally, they are particularly versatile, have low friction and are optimized for low noise and low vibration, which enables high rotational speeds. They accommodate radial and axial loads in both directions, are easy to mount, and require less maintenance than many other bearing types.
| d |
90 mm
|
Bore diameter |
|---|---|---|
| D |
190 mm
|
Outside diameter |
| B |
43 mm
|
Width |
| d1 |
≈ 121.15 mm
|
Shoulder diameter inner ring |
| D2 |
≈ 166 mm
|
Recess diameter outer ring shoulder |
| r1,2 |
min. 3 mm
|
Chamfer dimension |
| da |
min. 104 mm
|
Abutment diameter shaft |
|---|---|---|
| Da |
min. 171 mm
|
Abutment diameter shaft |
| Da |
max. 176 mm
|
Abutment diameter housing |
| ra |
max. 2.5 mm
|
Fillet radius |
| Basic dynamic load rating | C |
151 kN
|
|---|---|---|
| Basic static load rating | C0 |
108 kN
|
| Fatigue load limit | Pu |
3.8 kN
|
| Reference speed |
7 500 r/min
|
|
| Limiting speed |
7 000 r/min
|
|
| Calculation factor | kr |
0.03
|
| Calculation factor | f0 |
13.3
|
| Mass bearing |
5.76 kg
|
