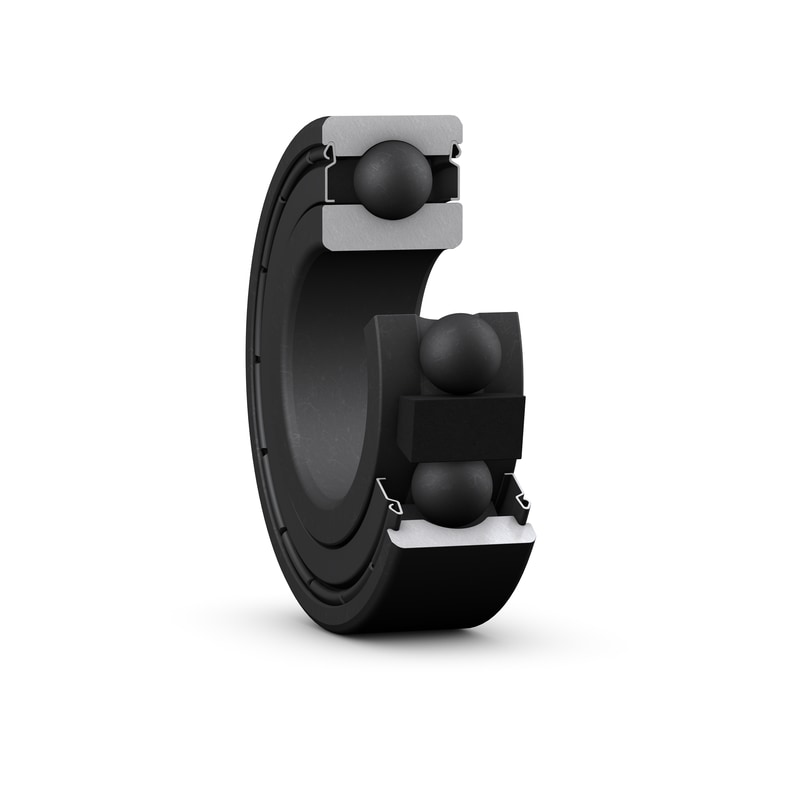

Single row deep groove ball bearings for high temperature applications, with shields on both sides, are designed for challenging operating conditions, with certain variants being capable of performing at temperatures as high as 350 °C (660 °F). They have larger radial internal clearances and use graphite-based lubricants that enable operation at high temperatures. They are lubricated for the life of the bearing and the entire surface of the bearings and shields are manganese phosphate treated, which enhances adhesion of the lubricant to the metal and improves their running-in properties. As with deep groove ball bearings generally, they are particularly versatile, accommodate radial and axial loads in both directions, and are easy to mount.
| Running in required |
No
|
| d |
55 mm
|
Bore diameter |
|---|---|---|
| D |
120 mm
|
Outside diameter |
| B |
29 mm
|
Width |
| d1 |
≈ 75.34 mm
|
Shoulder diameter inner ring |
| D2 |
≈ 103.7 mm
|
Recess diameter outer ring shoulder |
| r1,2 |
min. 2 mm
|
Chamfer dimension |
| da |
min. 66 mm
|
Abutment diameter shaft |
|---|---|---|
| da |
max. 75.2 mm
|
Abutment diameter shaft |
| Da |
max. 109 mm
|
Abutment diameter housing |
| ra |
max. 2 mm
|
Fillet radius |
| Basic static load rating | C0 |
45 kN
|
|---|---|---|
| Limiting speed |
50 r/min
|
|
| Operating temperature | T |
max. 350 °C
|
| Mass bearing |
1.42 kg
|
