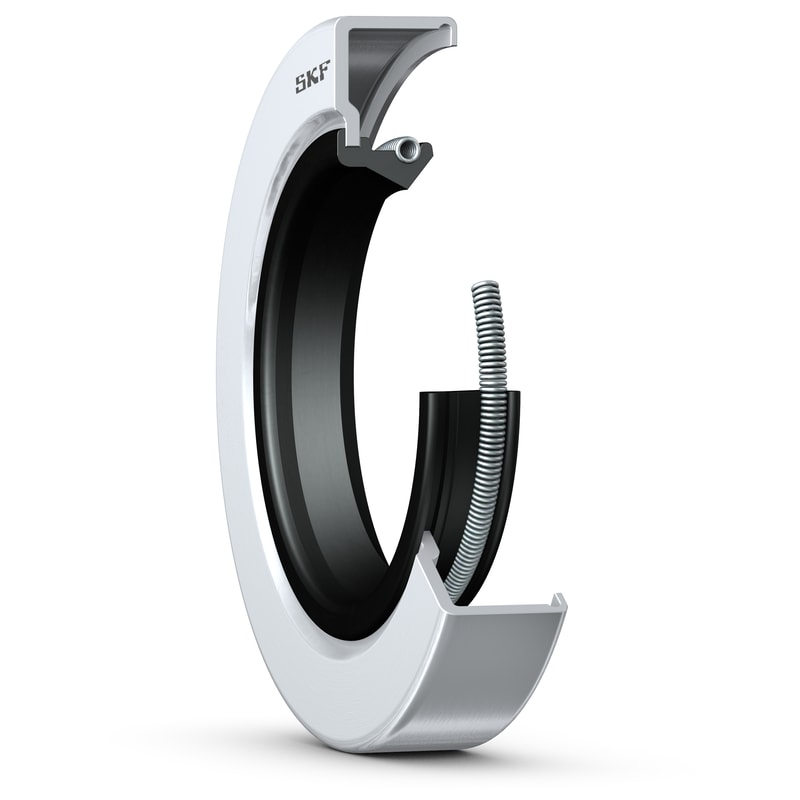

62X75X10 CRS1 RRadial shaft seal with metal case and conventional straight sealing lip, for oil or grease
Radial shaft seals are used between rotating and stationary machine components, or between components in relative motion. CRS1 seals are designed with a single metal case, a sealing lip made of elastomer for best sealing against the rotating shaft. The seal also has a garter spring to optimize sealing against the shaft.
| Type of outside diameter |
Metal-cased
|
| Lip material |
Nitrile rubber (NBR)
|
| Seal design |
CRS1
|
Dimensions
| d1 |
62 mm
|
Shaft diameter |
|---|---|---|
| D |
75 mm
|
Housing bore diameter |
| b |
10 mm
|
Seal width |
Application and operating conditions
| Operating temperature |
min. -40 °C
|
| Operating temperature |
max. 100 °C
|
| Circumferential speed |
max. 8.71 m/s
|
| Rotational speed |
max. 2 700 r/min
|
| Pressure differential |
0.07 N/mm²
|
