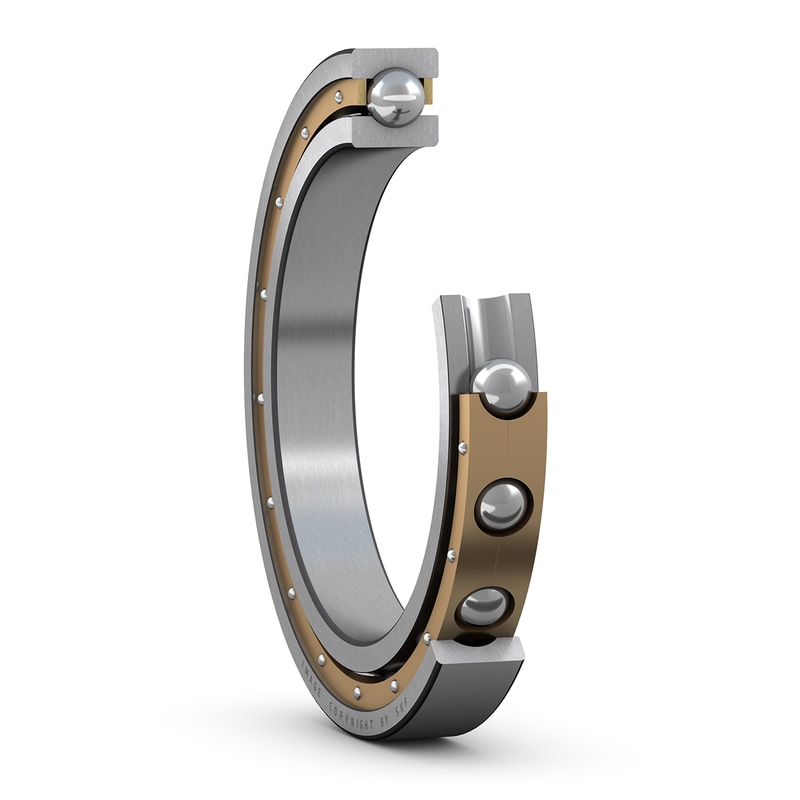

Single row deep groove ball bearings are particularly versatile, have low friction and are optimized for low noise and low vibration, which enables high rotational speeds. They accommodate radial and axial loads in both directions, are easy to mount, and require less maintenance than many other bearing types.
| d |
460 mm
|
Bore diameter |
|---|---|---|
| D |
580 mm
|
Outside diameter |
| B |
56 mm
|
Width |
| d1 |
≈ 498 mm
|
Shoulder diameter |
| D1 |
≈ 541.63 mm
|
Shoulder diameter |
| r1,2 |
min. 3 mm
|
Chamfer dimension |
| da |
min. 473 mm
|
Diameter of shaft abutment |
|---|---|---|
| Da |
max. 567 mm
|
Diameter of housing abutment |
| ra |
max. 2.5 mm
|
Radius of shaft or housing fillet |
| Basic dynamic load rating | C |
319 kN
|
|---|---|---|
| Basic static load rating | C0 |
570 kN
|
| Fatigue load limit | Pu |
10.6 kN
|
| Reference speed |
2 000 r/min
|
|
| Limiting speed |
1 600 r/min
|
|
| Minimum load factor | kr |
0.015
|
| Calculation factor | f0 |
17.1
|
| Mass bearing |
35 kg
|
| Dimensional tolerances |
Normal
|
| Radial run-out |
Normal
|
