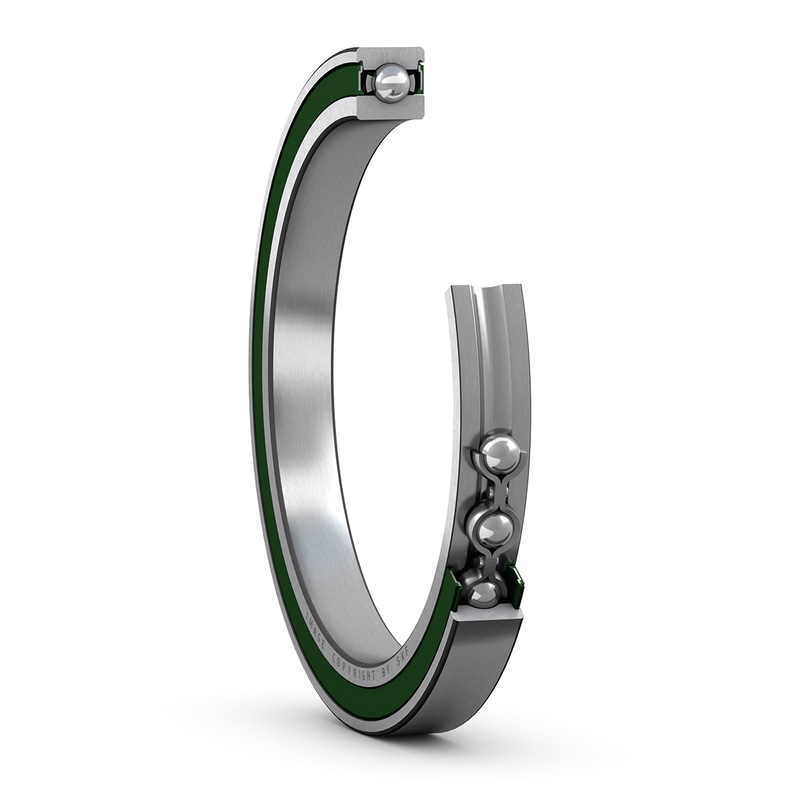

Single row deep groove ball bearings with seals or shields are particularly versatile, have low friction and are optimized for low noise and low vibration, which enables high rotational speeds. They accommodate radial and axial loads in both directions, are easy to mount, and require less maintenance than many other bearing types. The integral sealing can significantly prolong bearing service life because it keeps lubricant in the bearings and contaminants out.
| d |
130 mm
|
Bore diameter |
|---|---|---|
| D |
165 mm
|
Outside diameter |
| B |
18 mm
|
Width |
| d1 |
≈ 140 mm
|
Shoulder diameter |
| D2 |
≈ 157.7 mm
|
Recess diameter |
| r1,2 |
min. 1.1 mm
|
Chamfer dimension |
| da |
min. 136 mm
|
Diameter of shaft abutment |
|---|---|---|
| da |
max. 139 mm
|
Diameter of shaft abutment |
| Da |
max. 159 mm
|
Diameter of housing abutment |
| ra |
max. 1 mm
|
Radius of shaft or housing fillet |
| Basic dynamic load rating | C |
37.7 kN
|
|---|---|---|
| Basic static load rating | C0 |
43 kN
|
| Fatigue load limit | Pu |
1.6 kN
|
| Reference speed |
8 000 r/min
|
|
| Limiting speed |
3 800 r/min
|
|
| Minimum load factor | kr |
0.015
|
| Calculation factor | f0 |
16.1
|
| Mass bearing |
0.93 kg
|
| Dimensional tolerances |
Normal
|
| Radial run-out |
Normal
|
