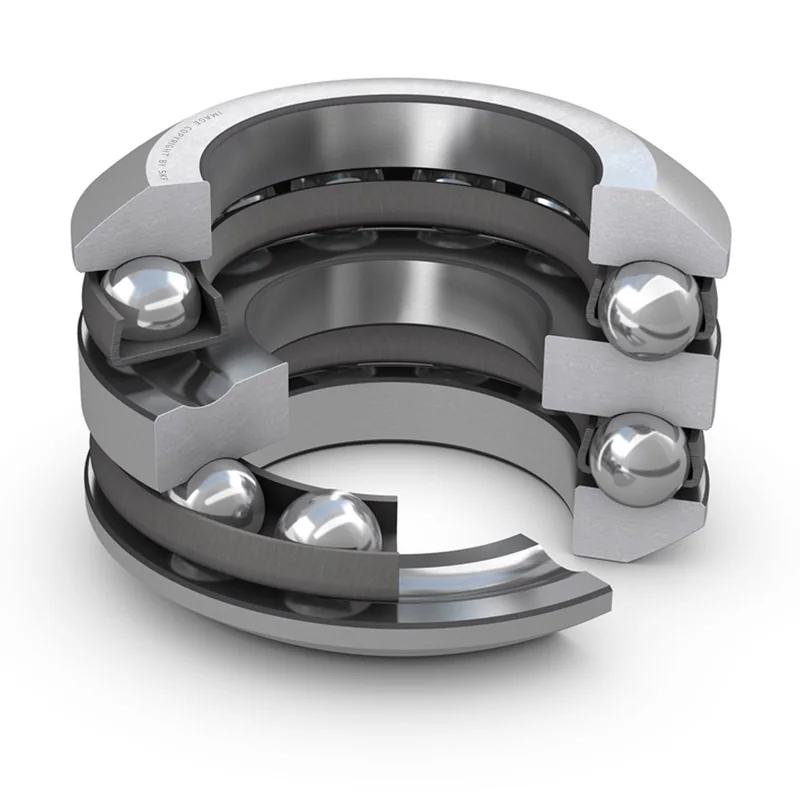

Double direction thrust ball bearings with a sphered housing washer can accommodate axial loads in both directions, but they must not be subjected to any radial load. Many of the components are interchangeable. These bearings can be used together with a sphered seat washer adjacent to the housing washer or adjacent to a machine component manufactured with a sphered surface. The shaft washers have a ground bore that enables an interference fit.
| d |
35 mm
|
Bore diameter |
|---|---|---|
| D |
100 mm
|
Outside diameter |
| H |
78.9 mm
|
Height |
| H1 |
86 mm
|
Height bearing including seat washer |
| D1 |
≈ 47 mm
|
Inner diameter housing washer |
| D2 |
72 mm
|
Inner diameter sphered seat washer |
| D3 |
105 mm
|
Outside diameter sphered housing washer |
| B |
17 mm
|
Height shaft washer |
| C |
12.5 mm
|
Height sphered housing washer |
| R |
80 mm
|
Radius sphered housing washer |
| s |
23.5 mm
|
Centre height housing washer sphere |
| r1,2 |
min. 1.1 mm
|
Chamfer dimension housing washer |
| r3,4 |
min. 0.6 mm
|
Chamfer dimension shaft washer |
| da |
45 mm
|
Abutment diameter shaft |
|---|---|---|
| Da |
max. 72 mm
|
Abutment diameter housing |
| ra |
max. 1 mm
|
Fillet radius housing |
| rb |
max. 0.6 mm
|
Fillet radius shaft |
| Basic dynamic load rating | C |
124 kN
|
|---|---|---|
| Basic static load rating | C0 |
240 kN
|
| Fatigue load limit | Pu |
9 kN
|
| Reference speed |
1 500 r/min
|
|
| Limiting speed |
2 000 r/min
|
|
| Minimum load factor | A |
0.37
|
| Mass bearing (including seat washer where applicable) |
3 kg
|
| Seat washer |
U 409
|
