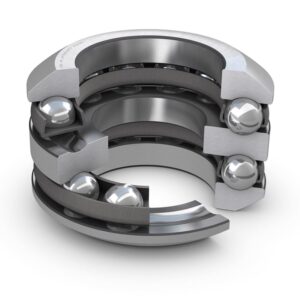

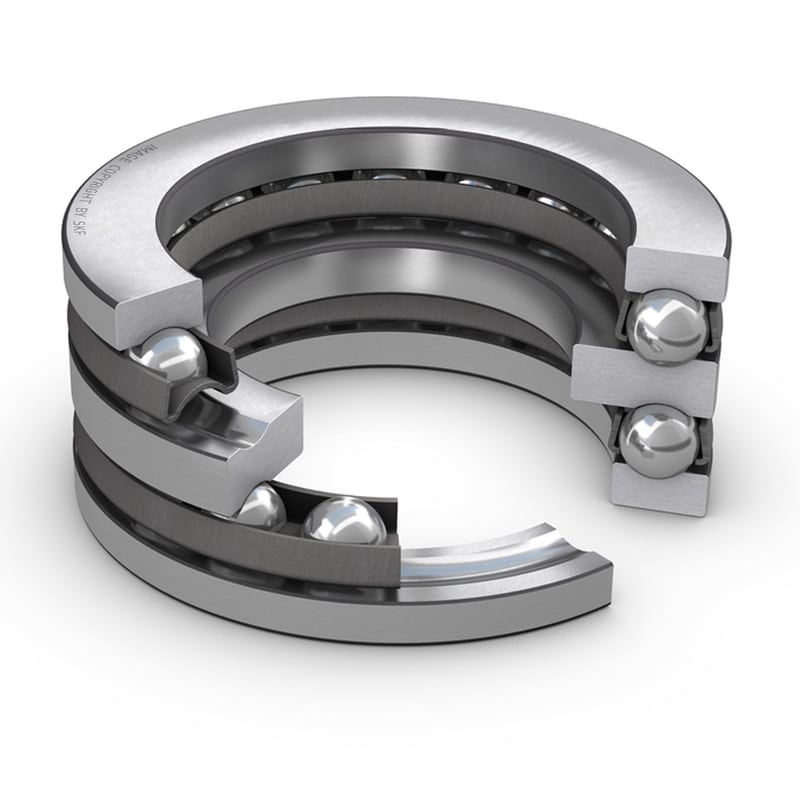

Double direction thrust ball bearings can accommodate axial loads in both directions, but they must not be subjected to any radial load. Their separable components facilitate mounting/dismounting and maintenance inspections, and many of the components are interchangeable. The shaft washers have a ground bore that enables an interference fit.
| d |
50 mm
|
Bore diameter |
|---|---|---|
| D |
95 mm
|
Outside diameter |
| H |
46 mm
|
Height |
| D1 |
≈ 62 mm
|
Inner diameter housing washer |
| B |
10 mm
|
Height shaft washer |
| r1,2 |
min. 1 mm
|
Chamfer dimension housing washer |
| r3,4 |
min. 0.6 mm
|
Chamfer dimension shaft washer |
| da |
60 mm
|
Abutment diameter shaft |
|---|---|---|
| Da |
max. 74 mm
|
Abutment diameter housing |
| ra |
max. 1 mm
|
Fillet radius housing |
| rb |
max. 0.6 mm
|
Fillet radius shaft |
| Basic dynamic load rating | C |
59.2 kN
|
|---|---|---|
| Basic static load rating | C0 |
140 kN
|
| Fatigue load limit | Pu |
5.1 kN
|
| Reference speed |
2 000 r/min
|
|
| Limiting speed |
2 800 r/min
|
|
| Minimum load factor | A |
0.12
|
| Mass bearing (including seat washer where applicable) |
1.2 kg
|
