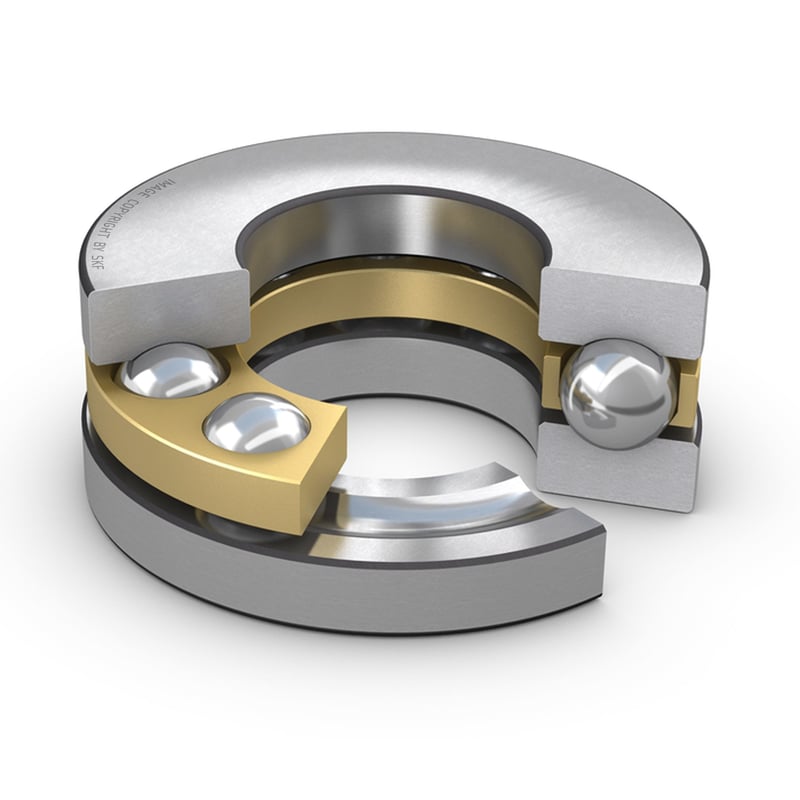

Single direction thrust ball bearings can accommodate axial loads in one direction. They must not be subjected to any radial load. Their separable components facilitate mounting/dismounting and maintenance inspections. Many of the components are interchangeable. The shaft washers have a ground bore that enables an interference fit.
| d |
100 mm
|
Bore diameter |
|---|---|---|
| D |
210 mm
|
Outside diameter |
| H |
85 mm
|
Height |
| d1 |
≈ 205 mm
|
Outside diameter shaft washer |
| D1 |
≈ 103 mm
|
Inner diameter housing washer |
| r1,2 |
min. 3 mm
|
Chamfer dimension washer |
| da |
min. 165 mm
|
Abutment diameter shaft |
|---|---|---|
| Da |
max. 145 mm
|
Abutment diameter housing |
| ra |
max. 2.5 mm
|
Fillet radius |
| Basic dynamic load rating | C |
371 kN
|
|---|---|---|
| Basic static load rating | C0 |
1 060 kN
|
| Fatigue load limit | Pu |
31.5 kN
|
| Reference speed |
950 r/min
|
|
| Limiting speed |
1 400 r/min
|
|
| Minimum load factor | A |
5.8
|
| Mass bearing (including seat washer where applicable) |
15 kg
|
