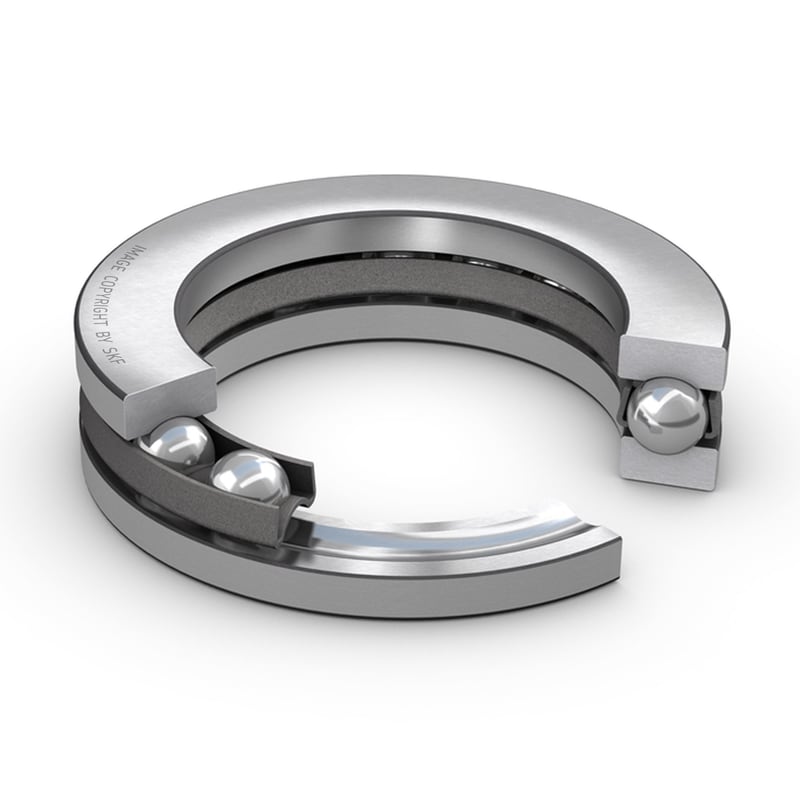

Single direction thrust ball bearings can accommodate axial loads in one direction. They must not be subjected to any radial load. Their separable components facilitate mounting/dismounting and maintenance inspections. Many of the components are interchangeable. The shaft washers have a ground bore that enables an interference fit.
| d |
20 mm
|
Bore diameter |
|---|---|---|
| D |
35 mm
|
Outside diameter |
| H |
10 mm
|
Height |
| d1 |
≈ 35 mm
|
Outside diameter shaft washer |
| D1 |
≈ 21 mm
|
Inner diameter housing washer |
| r1,2 |
min. 0.3 mm
|
Chamfer dimension washer |
| da |
min. 29 mm
|
Abutment diameter shaft |
|---|---|---|
| Da |
max. 26 mm
|
Abutment diameter housing |
| ra |
max. 0.3 mm
|
Fillet radius |
| Basic dynamic load rating | C |
15.1 kN
|
|---|---|---|
| Basic static load rating | C0 |
29 kN
|
| Fatigue load limit | Pu |
1.08 kN
|
| Reference speed |
7 500 r/min
|
|
| Limiting speed |
10 000 r/min
|
|
| Minimum load factor | A |
0.0044
|
| Mass bearing (including seat washer where applicable) |
0.037 kg
|
